Onduleur à onde sinusoïdale pure 6000 W DC 24 V à phase divisée avec chargeur secteur
- This 120V/240V AC split phase pure sine wave inverter is a combination of an inverter, battery charger and AC auto-transfer switch. High transfer efficiency is above 90%, , complete isolate surge interference of input & output's voltage and current, Impact resistance, super load capacity, built-in AVR stabilizer, continuous stable pure sine wave output, available at 240Vac (two 120Vac hot lines), and available 120/240Vac at the same time.
- Battery type setting choose : SLA / AGM / GEL / Li-ion battery & Customize. Support lifep04 AGM Flooded Lithium, Sealed, Gel, and Flooded Batteries..
- Adjustable Charging Current: The max charge current can be adjusted from 0%-100%, 100% is max charge current 35A. Setting the value to 0% will turn off the charging function.
- Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.
REMARQUE : DIFFÉRENTS TYPES DE CHARGES ONT DES COURANTS D'IMPULSION DE DÉMARRAGE DIFFÉRENTS. LES CLIENTS DOIVENT SÉLECTIONNER LE MODÈLE D'ONDULEUR APPROPRIÉ EN FONCTION DE LA PUISSANCE, DU COURANT ET DES CARACTÉRISTIQUES DE CHARGE RÉELLES DE L'ÉQUIPEMENT.
ATTENTION:
- Cet onduleur est capable de charger la batterie lorsque l'alimentation secteur est connectée à l'onduleur.
- 6000 watts est une puissance de sortie continue, la puissance de sortie maximale est de 18000 W
- Cet onduleur peut SEULEMENT fonctionne avec un système de batterie 24V.
- Onduleur NE PEUT PAS prise en charge de la connexion en parallèle.
- Onduleur DOIT avoir une batterie, et la batterie DOIT être connecté en premier.
CINQ MODES DE TRAVAIL :
1. Mode priorité AC/Ligne -- utilisez toujours l'alimentation secteur comme entrée prioritaire, fournissez une sortie secteur et chargez automatiquement la batterie.
2. Mode priorité batterie -- La priorité doit être donnée à l'alimentation par batterie. Après la protection contre les basses tensions, la batterie sera transférée vers l'alimentation électrique du marché. Lorsque la batterie est pleine, elle sera à nouveau transférée vers l'alimentation par batterie.
3. Mode ECO --- Charge < 10 % veille automatique et arrêt de la sortie, charge > 10 % redémarrage automatique vers l'inversion normale.
4. Mode générateur -- utilisez un générateur instable 240 V pour générer de l'énergie, accédez à l'entrée CA de l'onduleur, via le régulateur AVR de l'onduleur, correspondance automatique de la fréquence municipale de 60 Hz, régulateur de tension de sortie dans la plage de fonctionnement normale.
5. Mode sans surveillance --- Lorsque la tension de la batterie est faible, l'onduleur passe en mode veille (état d'économie d'énergie). Lorsque la batterie rétablit la valeur de tension définie par vous-même (comme la charge solaire), l'onduleur rétablit la sortie normale de l'onduleur et réalise un fonctionnement entièrement automatique sans surveillance !
Inverter x1
Power Cable x1
User Manual x1
Communication Wires (optional)
External Display (optional)
Download AMPINVT FT Series Split Phase Inverter Charger Manual
Produits populaires

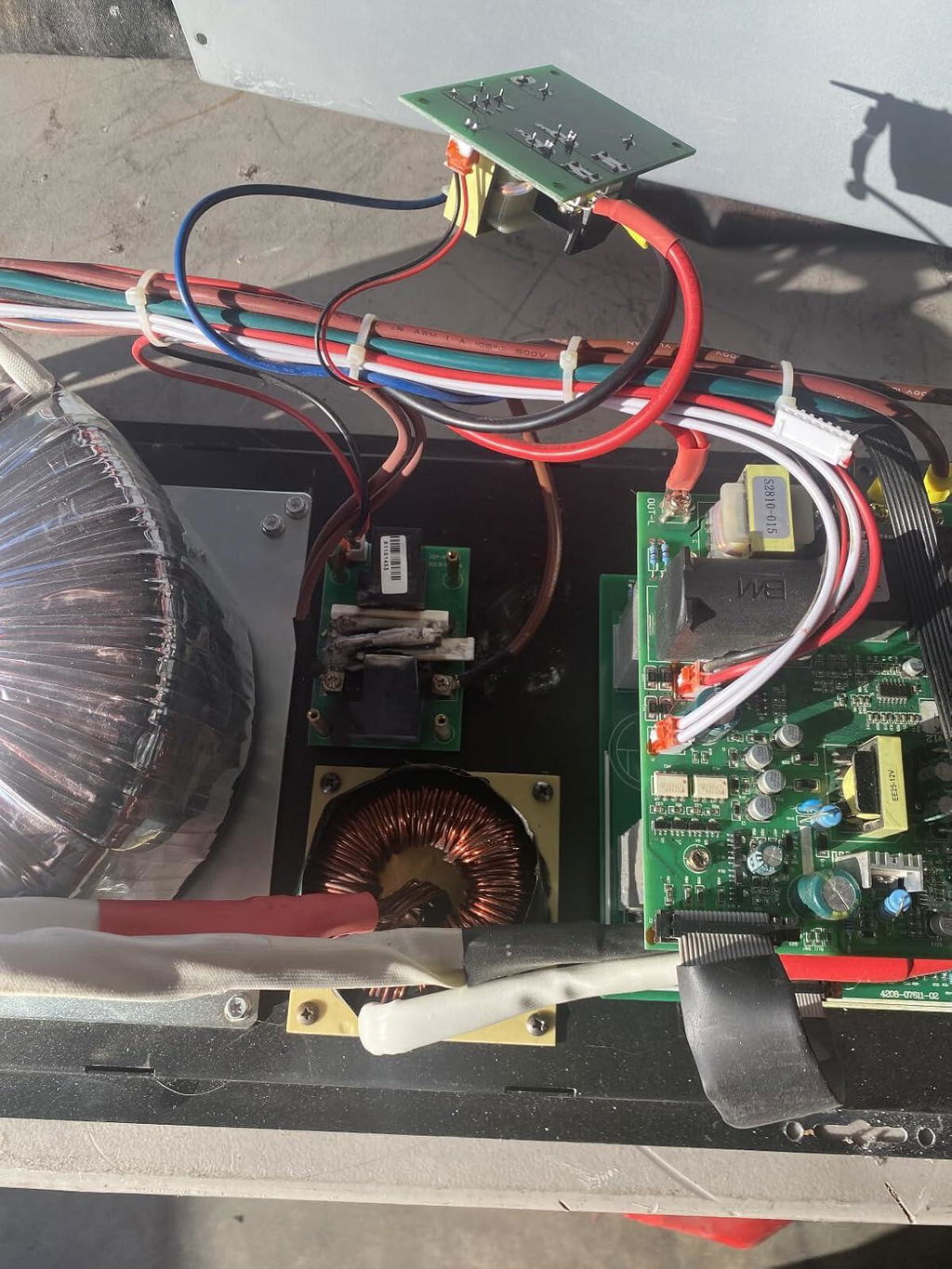

I recently encountered a minor setback with my Unit when I turned it on in temperatures colder than 32F. Unfortunately, this resulted in a blown-up component, as shown in the attached photo. However, I was thoroughly impressed by the responsiveness of the customer service team.
For $65.00, I was able to order a replacement part. Despite the distance, the part was shipped from China to the US in just 15 days. Since then, I've been utilizing my Unit for over a year, and apart from the cold temperature incident, it has proven to be incredibly reliable.
Warning the picture above shows the left side proper with 120v input and the 2 legs to the right it said to use only the 2 hots and 1 ground, don't do it, you MUST put the neutral in the last empty spot in picture for it to work proper, inverter will say output 117v but that's per leg so together at panel you will have 240v. So the 3rd pic shows no neutral hooked up and we had to ad it for it to all work proper.
It can charge lifepo4, lithium ,sla or gel.
You can run 120volts or 48volts in and it will run 2 separate legs of 120volt out but to run 240volts out you HAVE TO USE the ground and neutral then connect to your panel.
I have ran 10 gauge in on a standard plug to do thIs and it runs my 18,000 btu mini split, full size fridge and my tankless water heater and it only shows 35% usage. Wires don't get hot and it still charges my 48v 200ah lifepo4 at the same time to whatever voltage I set it at.
You can have the inverter on with battery power when you decide to plug your rv to 120v or 240v landline and it don't backfeed.
I use the proper gauge wire running from inverter to panel for the 2 legs to make 240v and have a 50amp shoreline to panel plug.
I use the remote panel for inverter (sold separately)being my setup is hidden and it works great and suggest buying it and the wires like 25 feet long.
I think this inverter is amazing and my electrician was amazed it ran the instant water heater with no light blinkage or inverter draw.

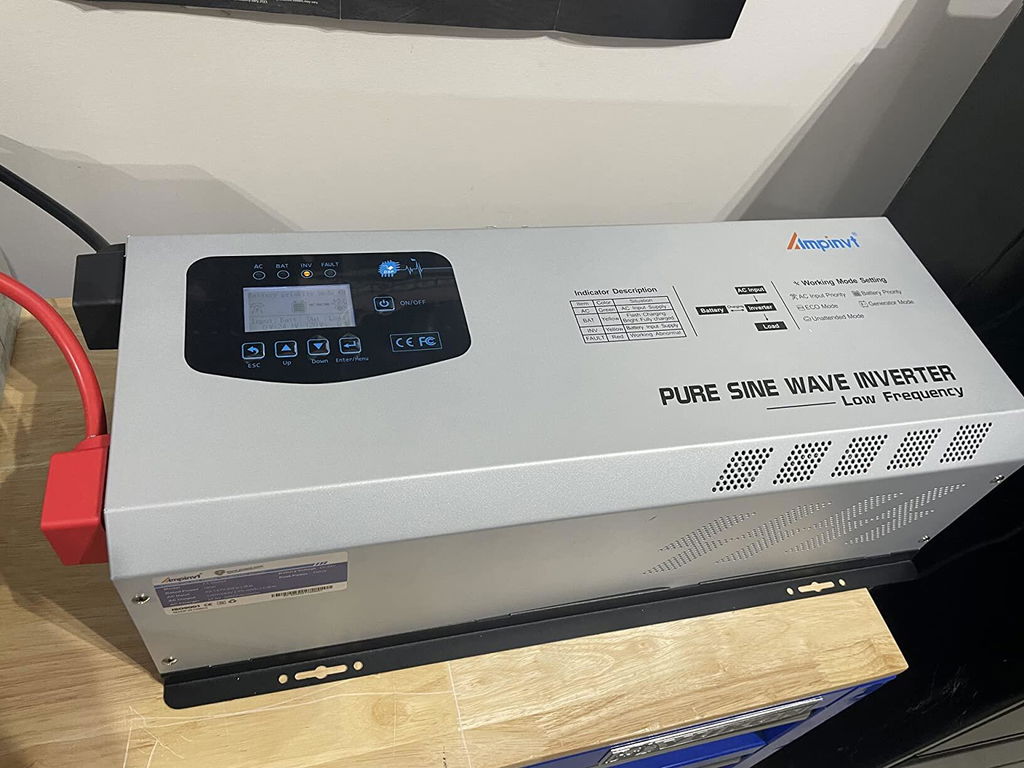

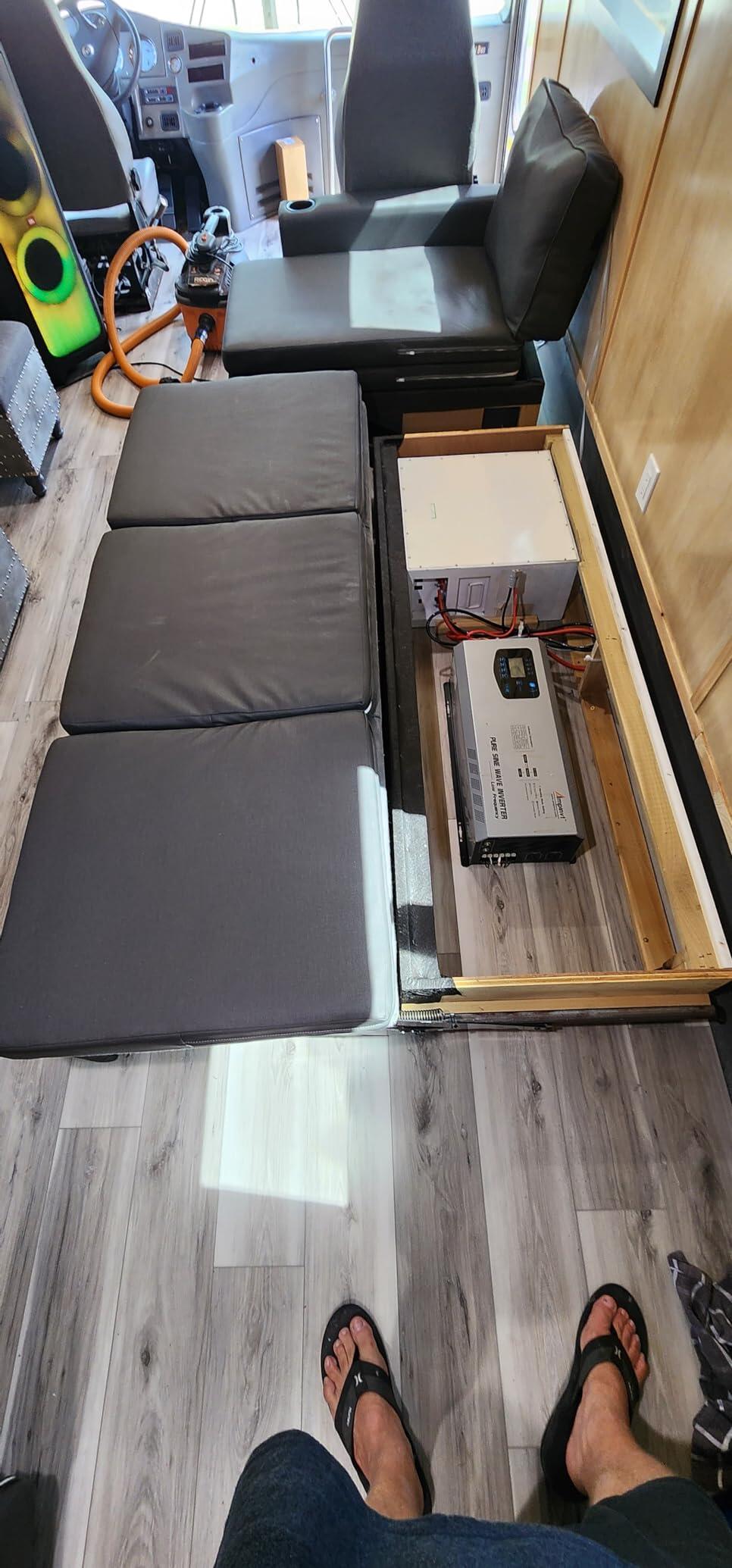

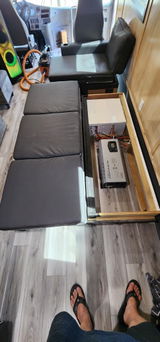

Works like a charm, its pretty big but runs quietly and efficiently ! Just converted my rv to solar and its doing its doing its job.
Very happy with this inverter. I have been tinkering with off-grid solar projects in my garage but wanted the ability to do more. This was a significant upgrade for me from a 12v 2000w inverter. So happy to have split phase and more capacity. I run a fridge and charge power tool batteries off it with two 12v 200ah AGM batteries in series and 200w of solar panels. Love that I can plug in a space heater no problem now.
I have barely used it (just during blackouts), but worked just as expected (I just added a LiFePo 100Ah battery, a fuse, and the connecting cables to the wall socket and to my fridge)
