5000W DC 48V Split Phase Pure Sine wave Inverter with AC Charger

Sale price$715.00 Regular price$975.00
Save $260.00
SKU: FT50248-US-1
AC Input:240v
AC Output:120V/240V
Product Model:Brand-New

  • This 120V/240V AC split phase pure sine wave inverter is a combination of an inverter, battery charger and AC auto-transfer switch. High transfer efficiency is above 90%, , complete isolate surge interference of input & output's voltage and current, Impact resistance, super load capacity, built-in AVR stabilizer, continuous stable pure sine wave output, available at 240Vac (two 120Vac hot lines), and available 120/240Vac at the same time.
  • Battery type setting choose : SLA / AGM / GEL / Li-ion battery & Customize. Support lifep04 AGM Flooded Lithium, Sealed, Gel, and Flooded Batteries..
  • Adjustable Charging Current: The max charge current can be adjusted from 0%-100%, 100% is max charge current 35A. Setting the value to 0% will turn off the charging function.
  • Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.
  • FAQs

    SERVICE

    1. I HAVE A QUESTION ABOUT A PRODUCT, WHERE CAN I FIND THE ANSWERS?
    We have the specification/FAQ and user manual on every product page, you can find more information about each product. If you still haven't found the answer, you can submit your question on the product page, or send an email to info4@ampinvt.com.

    2. WHERE CAN I FIND THE USER MANUAL OF MY PRODUCT?

    You can find the user manual on every product page or visit User Manual online in the support area.

    3. HOW CAN I BE NOTIFIED IF YOU EVER OFFER ANY DISCOUNT OR SALES?

    You can sign up to our newsletter on the footer of the website.


    ORDER

    1. HOW TO ORDER?
    You can order goods through pvace.com without even having to register! We accept major credit and debit cards, and secure payment option PayPal is supported too. We also accept wire transfer and Western Union payments.

    2. DO YOU HAVE MINIMUM ORDERS?

    Most of our products have no minimum order requirements, so you can shop for retail products at wholesale prices! Wholesalers can shop big and get even larger discounts.

    3. HOW TO GET THE WHOLESALE PRICE?

    You can contact us through Wholesale on the footer of the website, let us know how you will work with us and you estimate sales/month. We will contact you as soon as possible.

    4. DO I NEED TO PAY THE TAX FOR MY ORDER?

    No, it is tax free if you order in our website.

    5. HOW CAN I CANCEL THE ORDER?

    We're so sorry to hear that you're not going to move forward with your order. If you need any help about this, please contact our email info4@ampinvt.com with your order number on hand

    SHIPPING

    1. I’VE PUT A WRONG SHIPPING ADDRESS AND/OR PICKED A WRONG SIZE,CAN I CHANGE IT?
    Please email us right away at info4@ampinvt.com indicating your Order Number so we can assist you quickly. We will check your order in our system and if it still hasn’t been processed yet, we can still make changes. Incorrect shipping address: Please contact us right away. We process each order 3 to 5 working days, so if your order/s happens to be dispatched already, we won’t be able to grant your request. Incorrect size/model: Given that the item is already shipped out, we can't make amends for it. Once you receive the product, please send us an email at info4@ampinvt.com stating that you have received it. We will let you ship it back to us so we can exchange it for the correct item that you want. Please note that the shipping cost is shouldered by the receiver.

    2. HOW MUCH DO YOU CHARGE FOR SHIPPING?

    We provide free shipping in most places in the United States. But remote places and island areas need to pay for the shipping cost, such as: Hawaii, Puerto Rico, Alaska, etc.

    3. HOW LONG DOES THE DELIVERY TAKE?

    We need 3 to 5 working days to process the order, and usually 6-10 days later you will receive your products. The shipping is delayed for some objective or uncontrolled reasons. We will notice our customers ahead of delays.

    4. CAN YOU SHIP TO PO BOX?

    Sorry that we can not ship to PO box, please offer the physical address to us. Thanks a lot.

    5. CAN I SPECIFY A DELIVEY DATE?

    Sorry that we can not 100% guarantee that your order will be delivered on a specific date since the carrier is a third party. Sometimes a weather or operational delay could impact your delivery date. But we will we'll do our best to target your delivery date.
    It is recommedn that to contact us by info4@ampinvt.com before you place the order. So we can make sure if we can meet your requirement and make a note in our system.

    As soon as your order is shiped, we'll send a shipping confirmation email with tracking number that you can use to keep track of your package.

    6. HOW CAN I TRACK MY ORDER?

    Once you place the order, we will process the order in 3 to 5 working days. As soon as your order is shiped, we'll send a shipping confirmation email with tracking number that you can use to keep track of your package. Please remind that the delivery may take longer during/after holidays or severe weather conditions.

    If you're having trouble with your tracking information, please contact us by info4@ampinvt.com.

    RETURN & EXCHANGE

    1. WHAT IS THE WARRANTY ON YOUR PRODUCTS?
    Our products come with 12 months warranty, you can find the details on our page warranty & return.

    2. WHAT SHOULD I DO IF MY PRODUCT ARRIVES DEFECTIVE OR DAMAGED?

    We're so sorry that your product arrived in less than perfect condition. We are willing to help you resolve this issue right away and we need to know a bit of information on your order as well as the issue of your product. Please contact us by emailing info4@ampinvt.com with your order number.

    3. DO I NEED TO KEEP THE ORGINAL PACKAGE OR BOX OF THE PRODUCT?

    Please keep the original package if you need to return the product. It is the easiest way to get your products back to us. Thanks a lot.

    4. WHAT CAN I EXPECT THE REFUND FOR MY RETURN?

    Normally it will take 1-2 weeks to process returns. We'll refund your original form of payment if we receive the return product. The money may take 3-5 business days to go back to you if the card is a credit card, but if it's a debit card normally it will be processed within 7-10 business days, and sometimes it depends on bank processing time.

    5. HOW CAN I START A RETURN OR EXCHANGE?

    If you think the your products aren’t right for you within the return period, we're happy to help troubleshoot or initiate the return process. Please contact us at info4@ampinvt.com.


    Free shipping

    7-10 days can be delivered



    NOTE: DIFFERENT TYPES OF LOADS HAVE DIFFERENT STARTING IMPULSE CURRENTS. CUSTOMERS NEED TO SELECT THE APPROPRIATE INVERTER MODEL ACCORDING TO THE ACTUAL EQUIPMENT POWER, CURRENT, AND LOAD CHARACTERISTICS.



    ATTENTION:
    • This Power inverter is able to charge the battery bank when AC power is connected to the inverter.
    • 5000 watt is continuous output power, peak output power is 15000W
    • This inverter can ONLY work with 48V battery system.
    • Inverter CAN NOT support connect in parallel.
    • Inverter MUST have a battery, and the battery MUST be connected first.



    FIVE WOKING MODE:

    1. AC/Line priority mode -- always use ac power as priority input, provide ac output, and automatically charge the battery.

    2. Battery priority mode -- Priority should be given to battery power supply. After low voltage protection, the battery will be transferred to market power supply. When the battery is full, the battery will be transferred back to battery power.

    3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.

    4. Generator mode -- use unstable generator 240V to generate power, access the inverter AC input, through the inverter AVR regulator, automatic matching 60HZ municipal frequency, output voltage regulator in the normal operating range.

    5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!





















    Customer Reviews

    Based on 33 reviews
    97%
    (32)
    0%
    (0)
    3%
    (1)
    0%
    (0)
    0%
    (0)
    R
    Ryan Rowlett
    Currently Running Critical Loads Panel

    I have it currently hooked up to power a critical loads panel with AC charging from the main breaker panel (which is back fed from a separate PV inverter) and it's been working well for the past few days. I tested it's maximum amperage draw with an oven, burner, and air fryer going as it powered my lights and refrigerator and it handled it all very well. I used battery first mode until a DC breaker tripped and it automatically reversed to AC Input which was interesting to see. It's working well so far!

    R
    Ron
    Temperature Sensitive

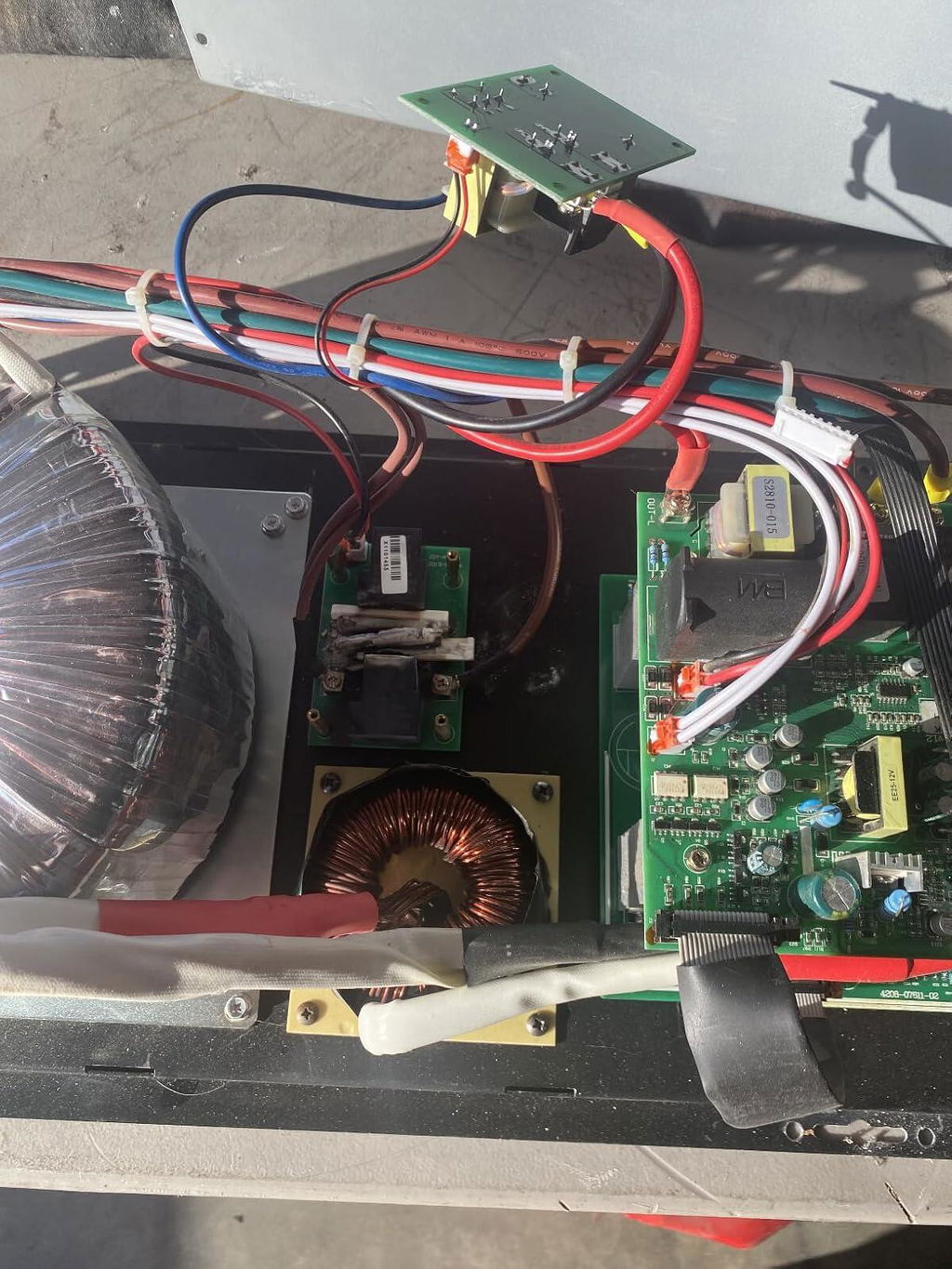

    I recently encountered a minor setback with my Unit when I turned it on in temperatures colder than 32F. Unfortunately, this resulted in a blown-up component, as shown in the attached photo. However, I was thoroughly impressed by the responsiveness of the customer service team.
    For $65.00, I was able to order a replacement part. Despite the distance, the part was shipped from China to the US in just 15 days. Since then, I've been utilizing my Unit for over a year, and apart from the cold temperature incident, it has proven to be incredibly reliable.

    F
    Fast Scooters
    This is how it works. All you need to know.

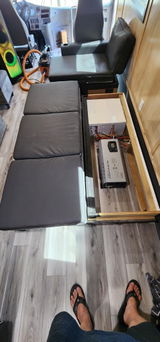

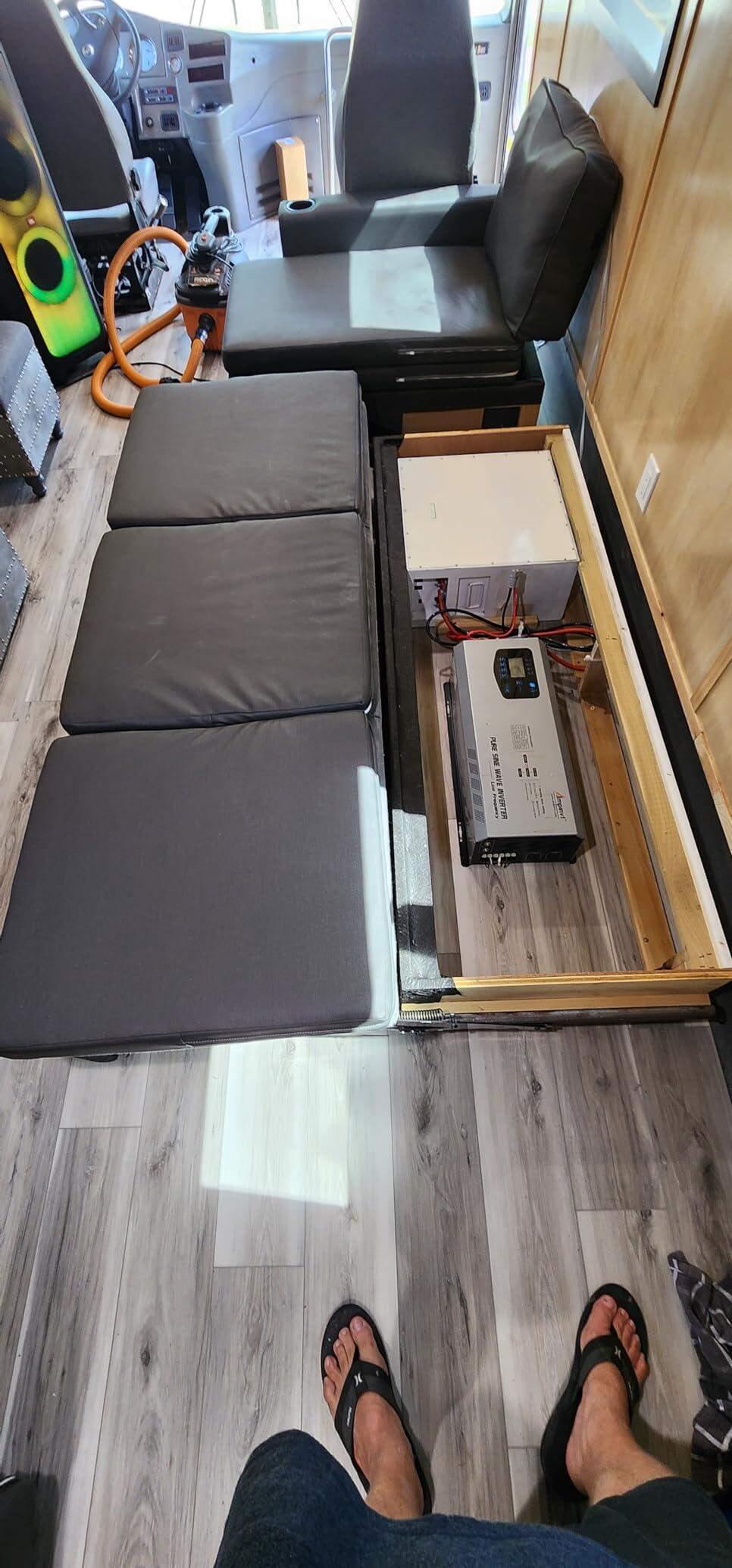

    Warning the picture above shows the left side proper with 120v input and the 2 legs to the right it said to use only the 2 hots and 1 ground, don't do it, you MUST put the neutral in the last empty spot in picture for it to work proper, inverter will say output 117v but that's per leg so together at panel you will have 240v. So the 3rd pic shows no neutral hooked up and we had to ad it for it to all work proper.

    It can charge lifepo4, lithium ,sla or gel.
    You can run 120volts or 48volts in and it will run 2 separate legs of 120volt out but to run 240volts out you HAVE TO USE the ground and neutral then connect to your panel.
    I have ran 10 gauge in on a standard plug to do thIs and it runs my 18,000 btu mini split, full size fridge and my tankless water heater and it only shows 35% usage. Wires don't get hot and it still charges my 48v 200ah lifepo4 at the same time to whatever voltage I set it at.
    You can have the inverter on with battery power when you decide to plug your rv to 120v or 240v landline and it don't backfeed.
    I use the proper gauge wire running from inverter to panel for the 2 legs to make 240v and have a 50amp shoreline to panel plug.
    I use the remote panel for inverter (sold separately)being my setup is hidden and it works great and suggest buying it and the wires like 25 feet long.
    I think this inverter is amazing and my electrician was amazed it ran the instant water heater with no light blinkage or inverter draw.

    s
    showtime
    Its a huge inverter

    Works like a charm, its pretty big but runs quietly and efficiently ! Just converted my rv to solar and its doing its doing its job.

    J
    JLove
    Robust Off-Grid Solution

    Very happy with this inverter. I have been tinkering with off-grid solar projects in my garage but wanted the ability to do more. This was a significant upgrade for me from a 12v 2000w inverter. So happy to have split phase and more capacity. I run a fridge and charge power tool batteries off it with two 12v 200ah AGM batteries in series and 200w of solar panels. Love that I can plug in a space heater no problem now.
