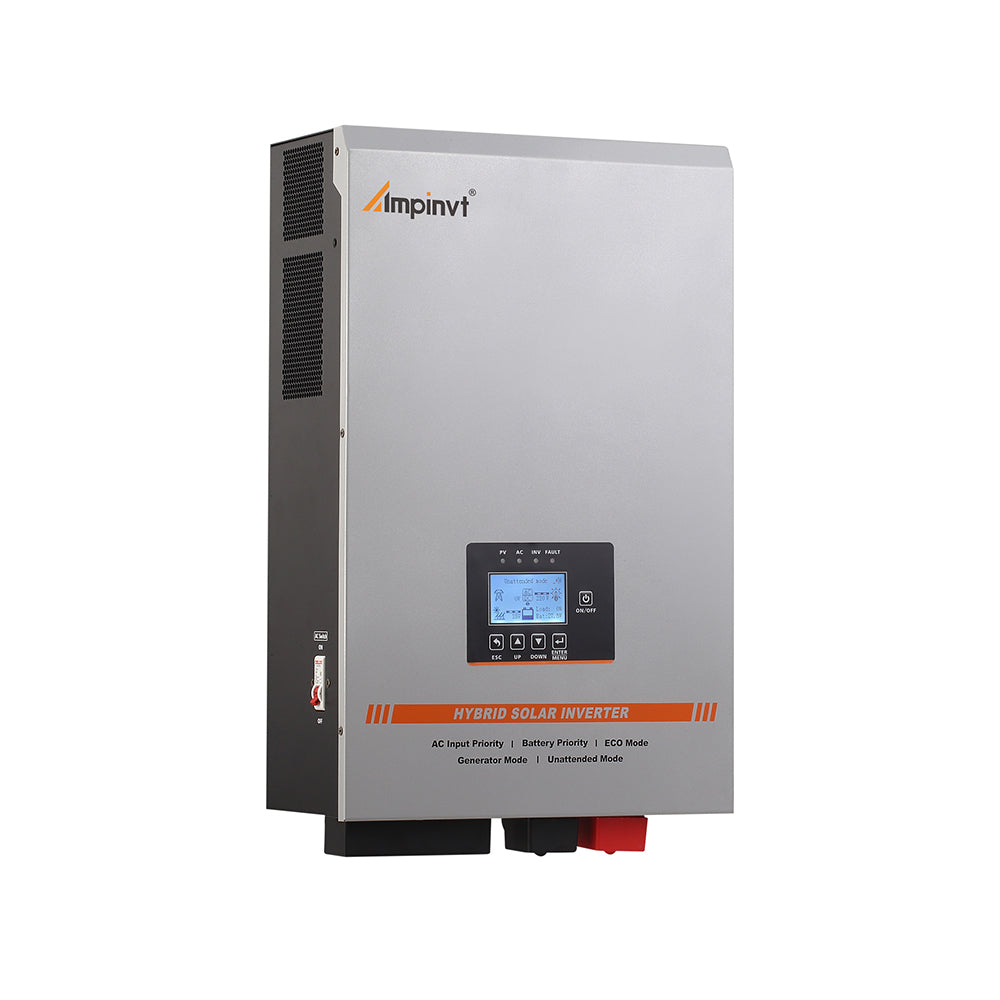

6000W DC 48V Off grid Low frequency Hybrid Solar Inverter Charger

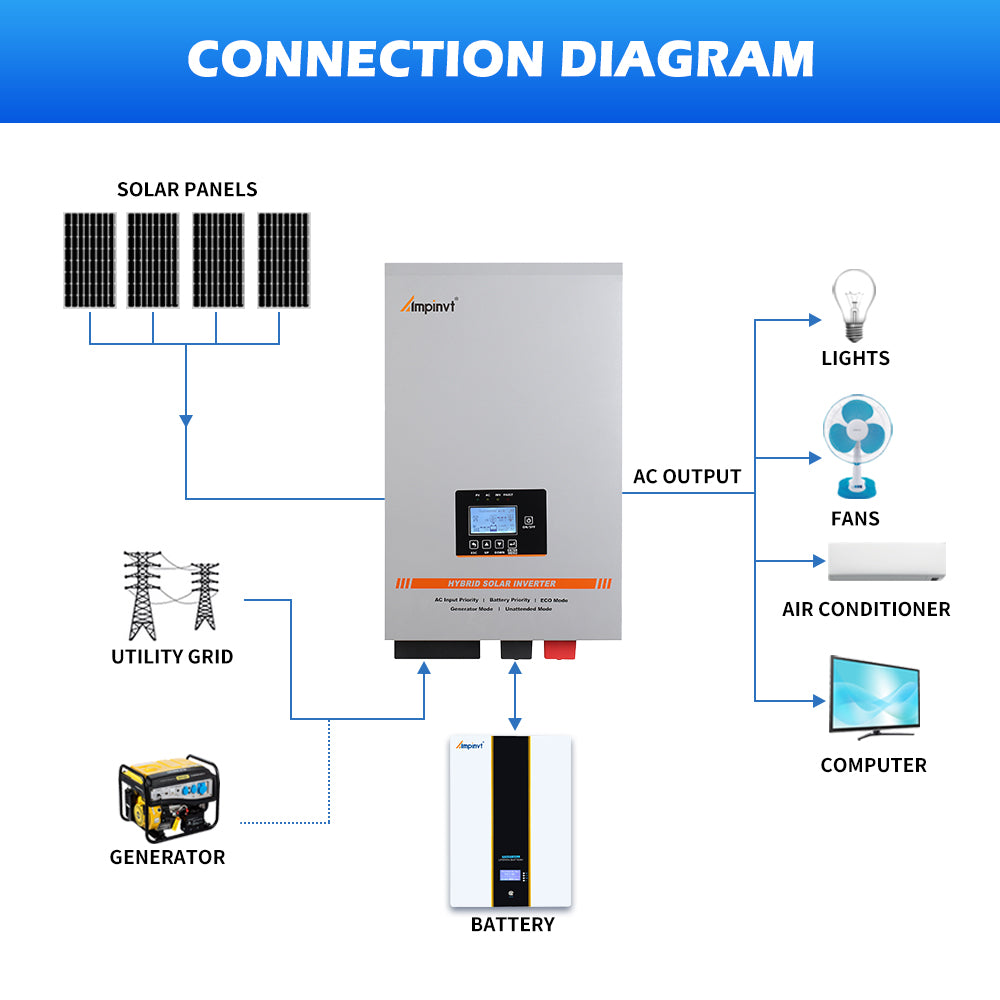

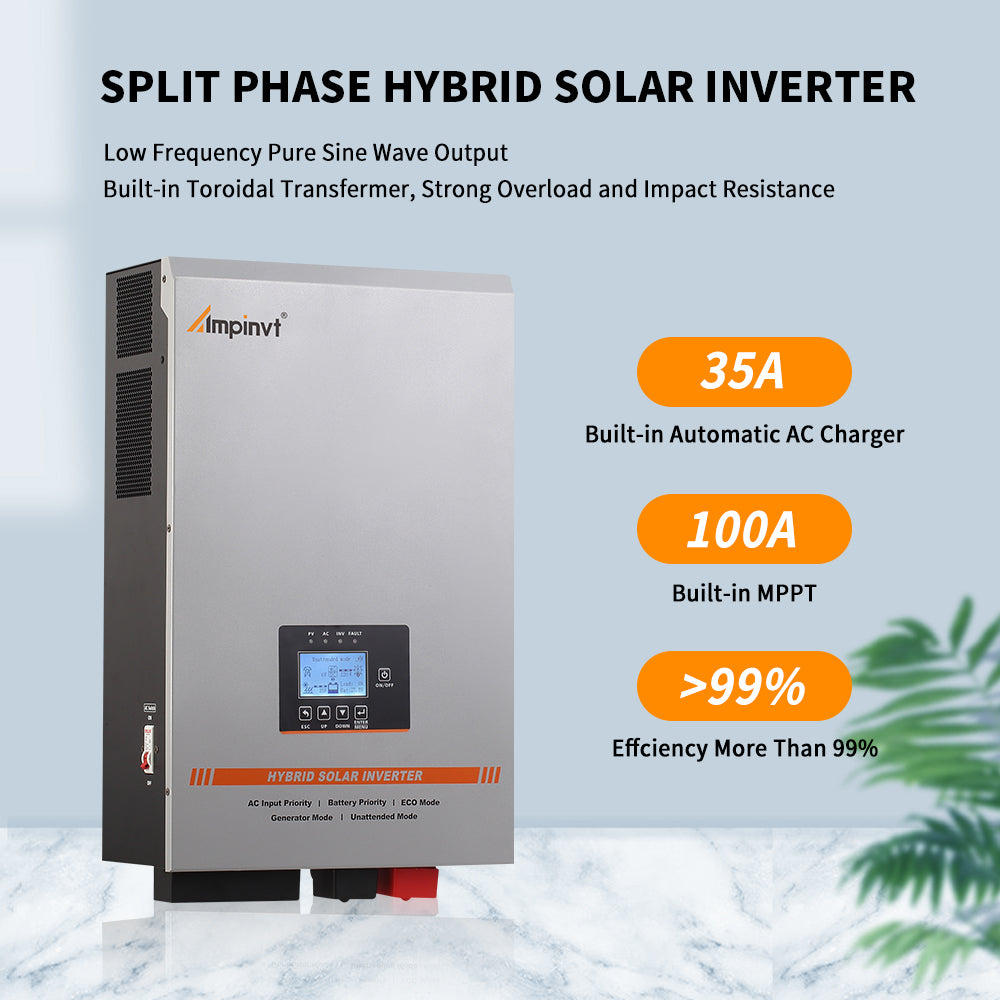

- This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time.
- The max charge current can be adjusted from 0%-100%, 100% is max charge current 35A. Setting the value to 0% will turn off the charging function.

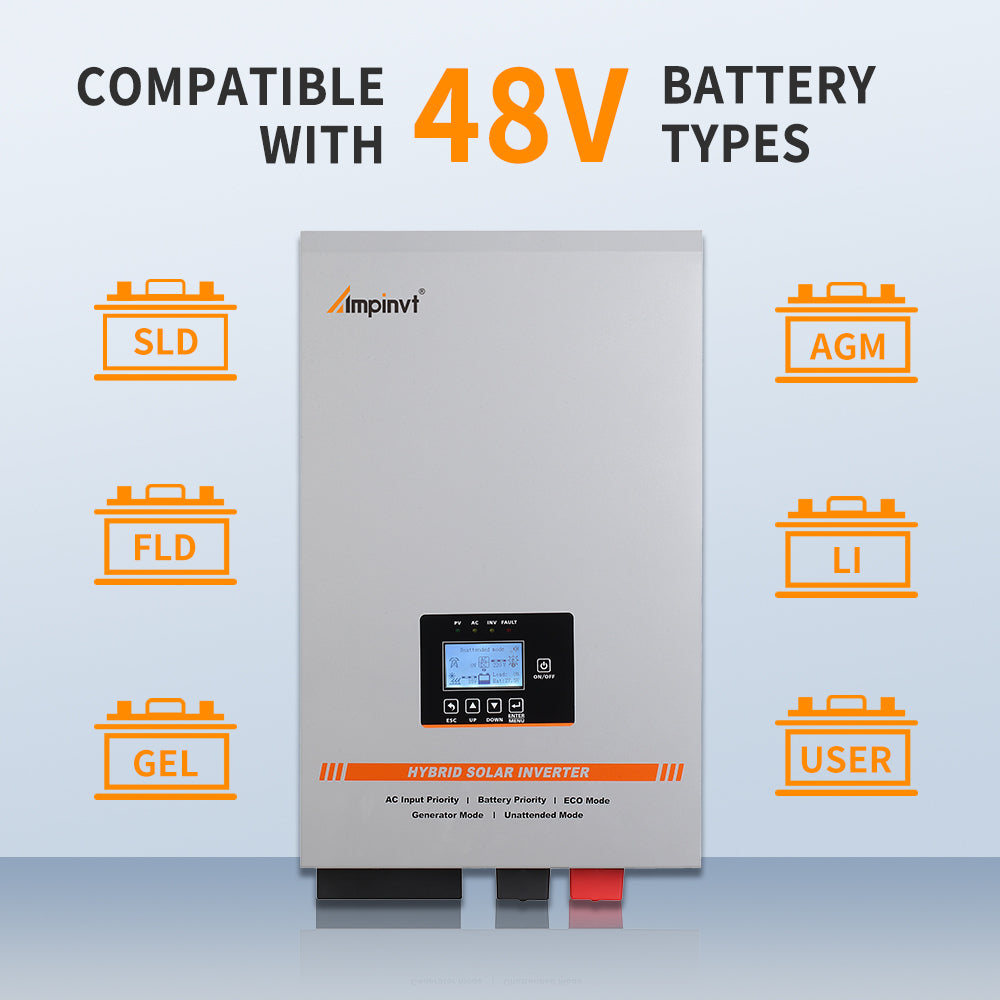

- 100A MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. Maximum PV Array Power is 5600W and the MAX PV input voltage is 150V DC.
- AC input over voltage protection / AC Input low voltage protection / Low battery alarm / High battery alarm / Over temperature protection / Over load protection Short Circuit protection (ls after fault) / Back feeding protection
NOTE: DIFFERENT TYPES OF LOADS HAVE DIFFERENT STARTING IMPULSE CURRENTS. CUSTOMERS NEED TO SELECT THE APPROPRIATE INVERTER MODEL ACCORDING TO THE ACTUAL EQUIPMENT POWER, CURRENT, AND LOAD CHARACTERISTICS.
ATTENTION:
- This Power inverter is able to charge the battery bank when AC power/Solar power is connected to the inverter.

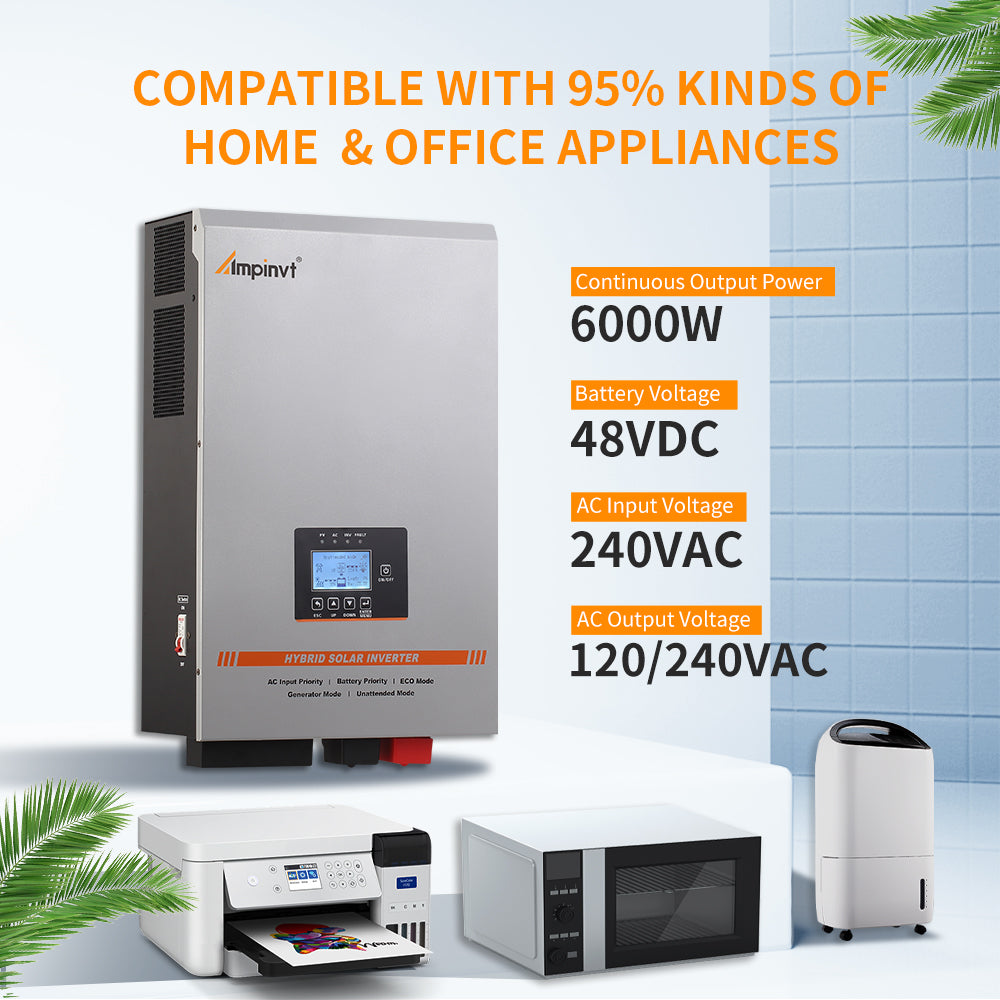

- 6000 watt is continuous output power, peak output power is 18000W
- This inverter can ONLY work with 48V battery system.
- Inverter CAN NOT support connect in parallel.
- Inverter MUST have a battery, and the battery MUST be connected first.

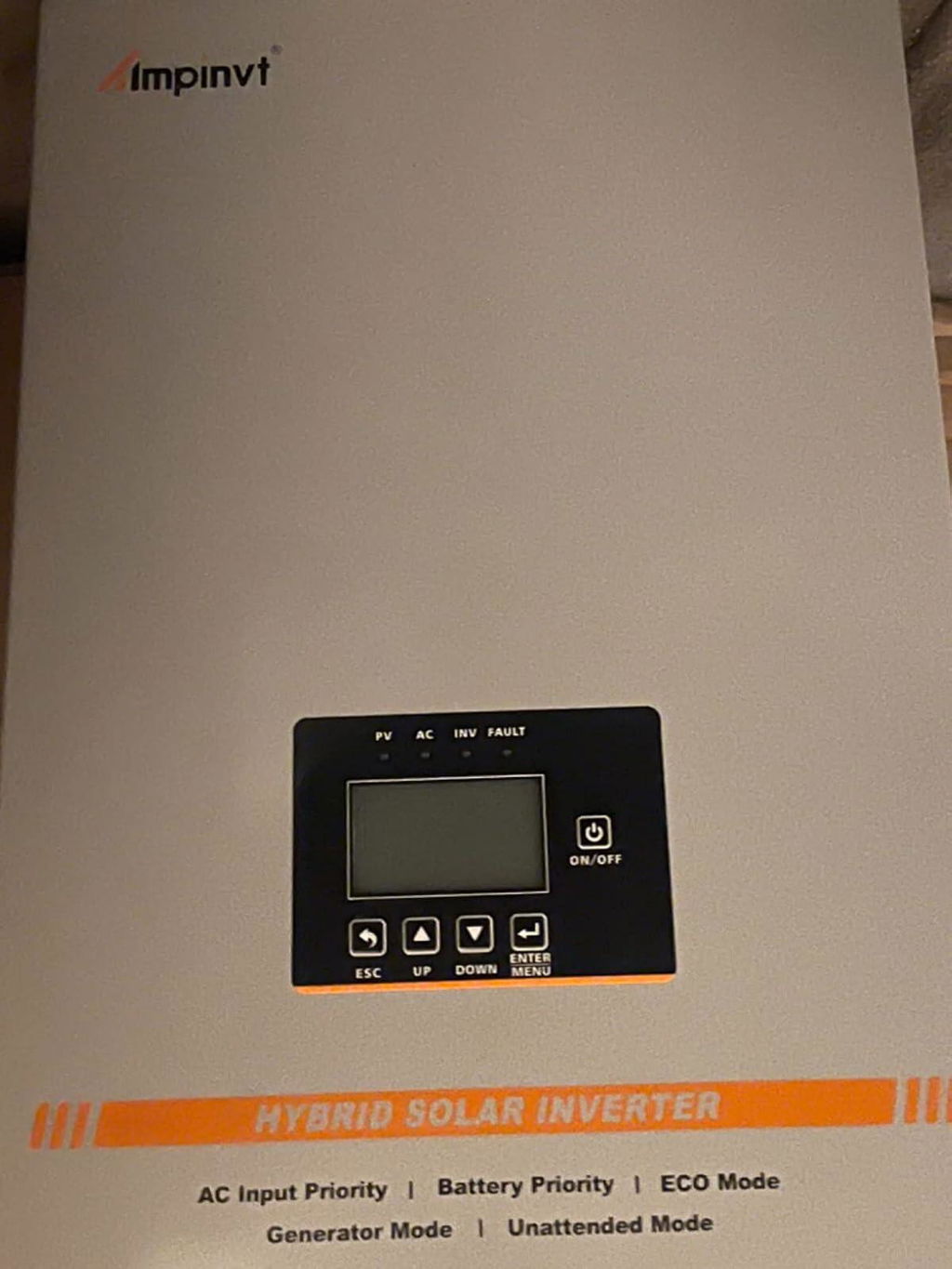

FIVE WOKING MODE:
1. AC/Line priority mode -- always use ac power as priority input, provide ac output, and automatically charge the battery.
2. Battery priority mode -- Priority should be given to battery power supply. After low voltage protection, the battery will be transferred to market power supply. When the battery is full, the battery will be transferred back to battery power.
3. ECO Mode---Load < 10% automatic sleep and stop output, load > 10% automatic boot back to normal inversion.
4. Generator mode -- use unstable generator 240V to generate power, access the inverter AC input, through the inverter AVR regulator, automatic matching 60HZ municipal frequency, output voltage regulator in the normal operating range.
5. Unattended Mode---When the battery is low voltage, the inverter goes into standby state(Power saving state). When the battery restores the voltage value set by yourself (such as solar charging), the inverter will restore the normal output of the inverter, and realize unattended full automatic operation!
