Inversor de onda sinusoidal pura de fase dividida de 5000 W CC y 48 V con cargador de CA
NOTA: DISTINTOS TIPOS DE CARGAS TIENEN DIFERENTES CORRIENTES DE IMPULSO DE ARRANQUE. LOS CLIENTES DEBEN SELECCIONAR EL MODELO DE INVERSOR ADECUADO DE ACUERDO CON LA POTENCIA, LA CORRIENTE Y LAS CARACTERÍSTICAS REALES DE LA CARGA DEL EQUIPO.
ATENCIÓN:
- Este inversor de potencia puede cargar el banco de baterías cuando la alimentación de CA está conectada al inversor.
- 5000 vatios es potencia de salida continua, la potencia de salida máxima es de 15000 W
- Este inversor puede SOLO Funciona con sistema de batería de 48 V.
- Inversor NO PUEDO Admite conexión en paralelo.
- Inversor DEBE tiene una batería, y la batería DEBE estar conectado primero
CINCO MODOS DE TRABAJO:
1. Modo de prioridad de línea/CA - Utilice siempre la alimentación de CA como entrada prioritaria, proporcione una salida de CA y cargue la batería automáticamente.
2. Modo de prioridad de batería -- Se debe dar prioridad a la fuente de alimentación de la batería. Después de la protección de bajo voltaje, la batería se transferirá a la fuente de alimentación del mercado. Cuando la batería esté llena, se transferirá nuevamente a la fuente de alimentación de la batería.
3. Modo ECO --- Carga < 10% suspensión automática y detención de salida, carga > 10% arranque automático de regreso a inversión normal.
4. Modo generador - utilice un generador inestable de 240 V para generar energía, acceda a la entrada de CA del inversor, a través del regulador AVR del inversor, coincidencia automática de la frecuencia municipal de 60 HZ, regulador de voltaje de salida en el rango operativo normal.
5. Modo sin supervisión : cuando la batería tiene bajo voltaje, el inversor pasa al estado de espera (estado de ahorro de energía). Cuando la batería recupera el valor de voltaje establecido por usted (como la carga solar), el inversor recuperará la salida normal y realizará un funcionamiento completamente automático sin supervisión.
Inverter x1
Power Cable x1
User Manual x1
Communication Wires (optional)
External Display (optional)
Download AMPINVT FT Series Split Phase Inverter Charger Manual
Productos Destacados

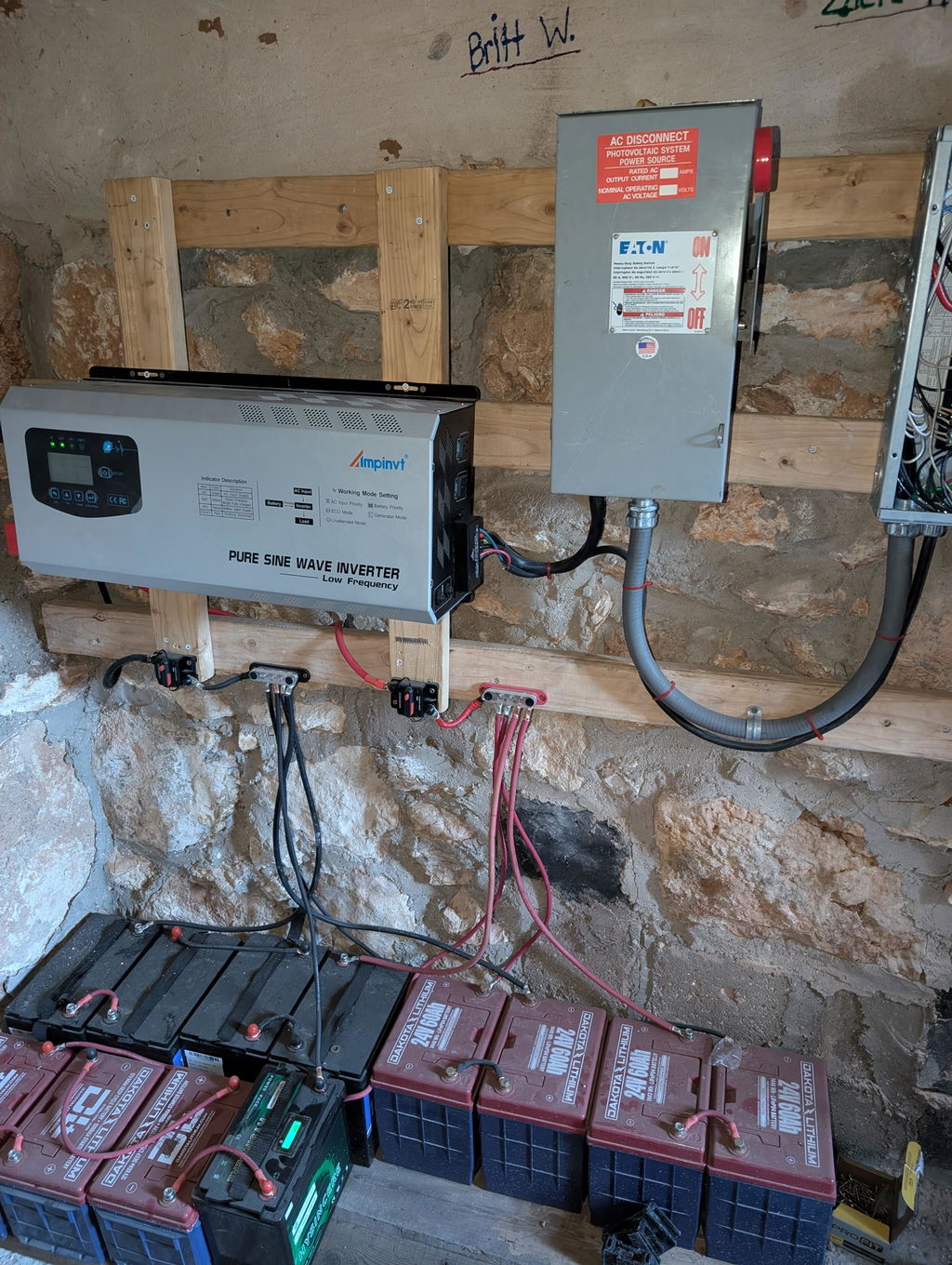

I have it currently hooked up to power a critical loads panel with AC charging from the main breaker panel (which is back fed from a separate PV inverter) and it's been working well for the past few days. I tested it's maximum amperage draw with an oven, burner, and air fryer going as it powered my lights and refrigerator and it handled it all very well. I used battery first mode until a DC breaker tripped and it automatically reversed to AC Input which was interesting to see. It's working well so far!

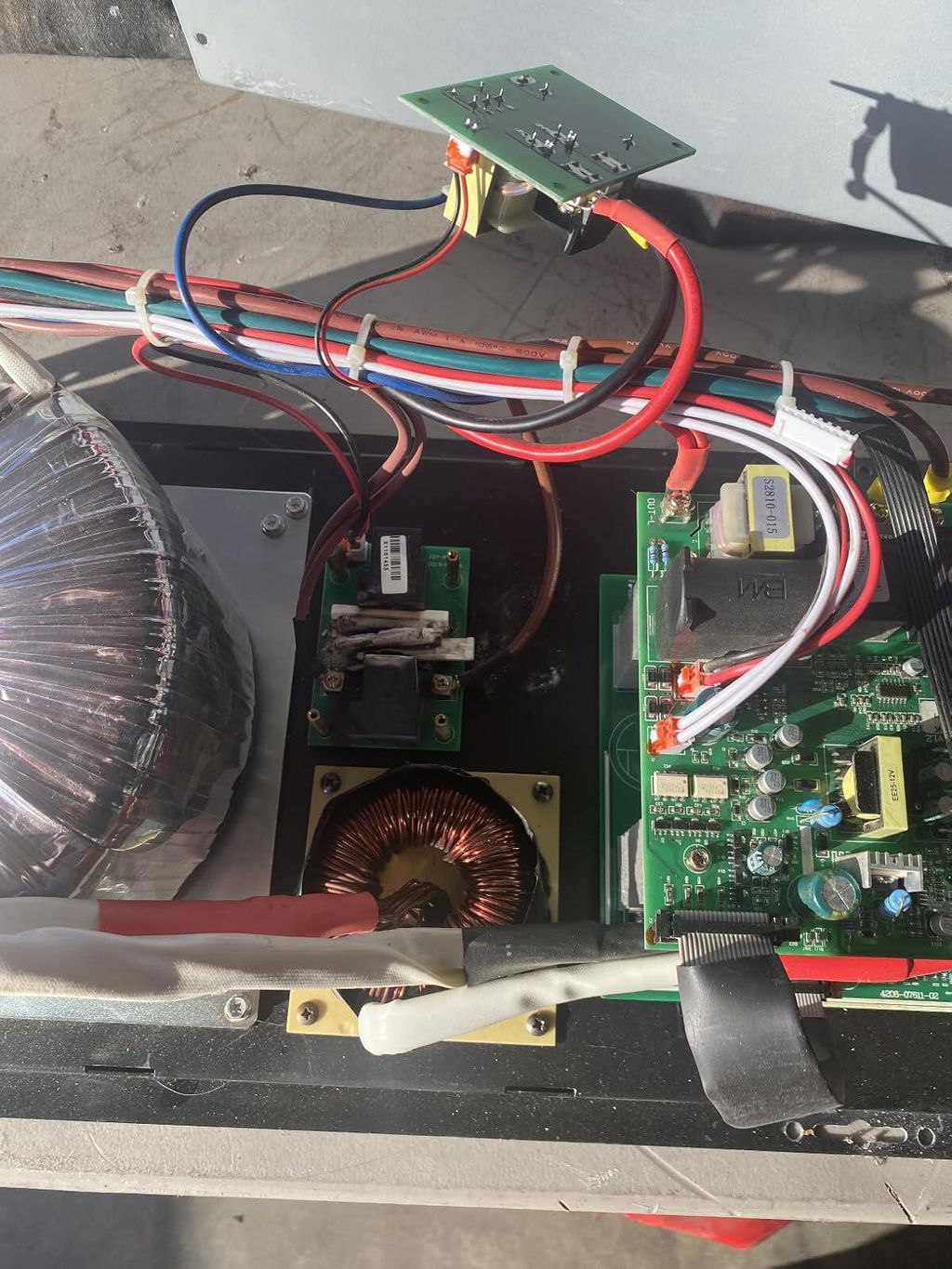

I recently encountered a minor setback with my Unit when I turned it on in temperatures colder than 32F. Unfortunately, this resulted in a blown-up component, as shown in the attached photo. However, I was thoroughly impressed by the responsiveness of the customer service team.
For $65.00, I was able to order a replacement part. Despite the distance, the part was shipped from China to the US in just 15 days. Since then, I've been utilizing my Unit for over a year, and apart from the cold temperature incident, it has proven to be incredibly reliable.
Warning the picture above shows the left side proper with 120v input and the 2 legs to the right it said to use only the 2 hots and 1 ground, don't do it, you MUST put the neutral in the last empty spot in picture for it to work proper, inverter will say output 117v but that's per leg so together at panel you will have 240v. So the 3rd pic shows no neutral hooked up and we had to ad it for it to all work proper.
It can charge lifepo4, lithium ,sla or gel.
You can run 120volts or 48volts in and it will run 2 separate legs of 120volt out but to run 240volts out you HAVE TO USE the ground and neutral then connect to your panel.
I have ran 10 gauge in on a standard plug to do thIs and it runs my 18,000 btu mini split, full size fridge and my tankless water heater and it only shows 35% usage. Wires don't get hot and it still charges my 48v 200ah lifepo4 at the same time to whatever voltage I set it at.
You can have the inverter on with battery power when you decide to plug your rv to 120v or 240v landline and it don't backfeed.
I use the proper gauge wire running from inverter to panel for the 2 legs to make 240v and have a 50amp shoreline to panel plug.
I use the remote panel for inverter (sold separately)being my setup is hidden and it works great and suggest buying it and the wires like 25 feet long.
I think this inverter is amazing and my electrician was amazed it ran the instant water heater with no light blinkage or inverter draw.

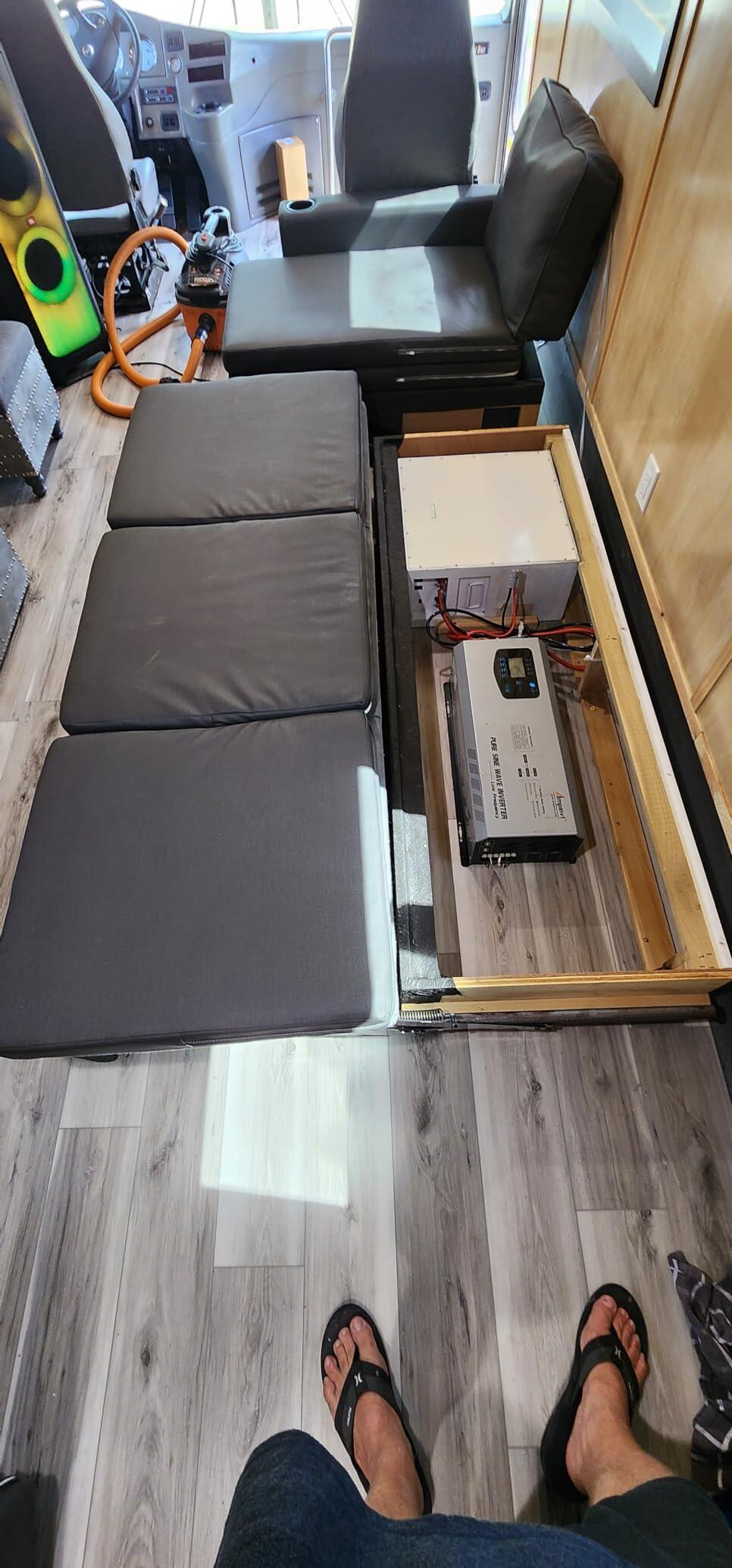

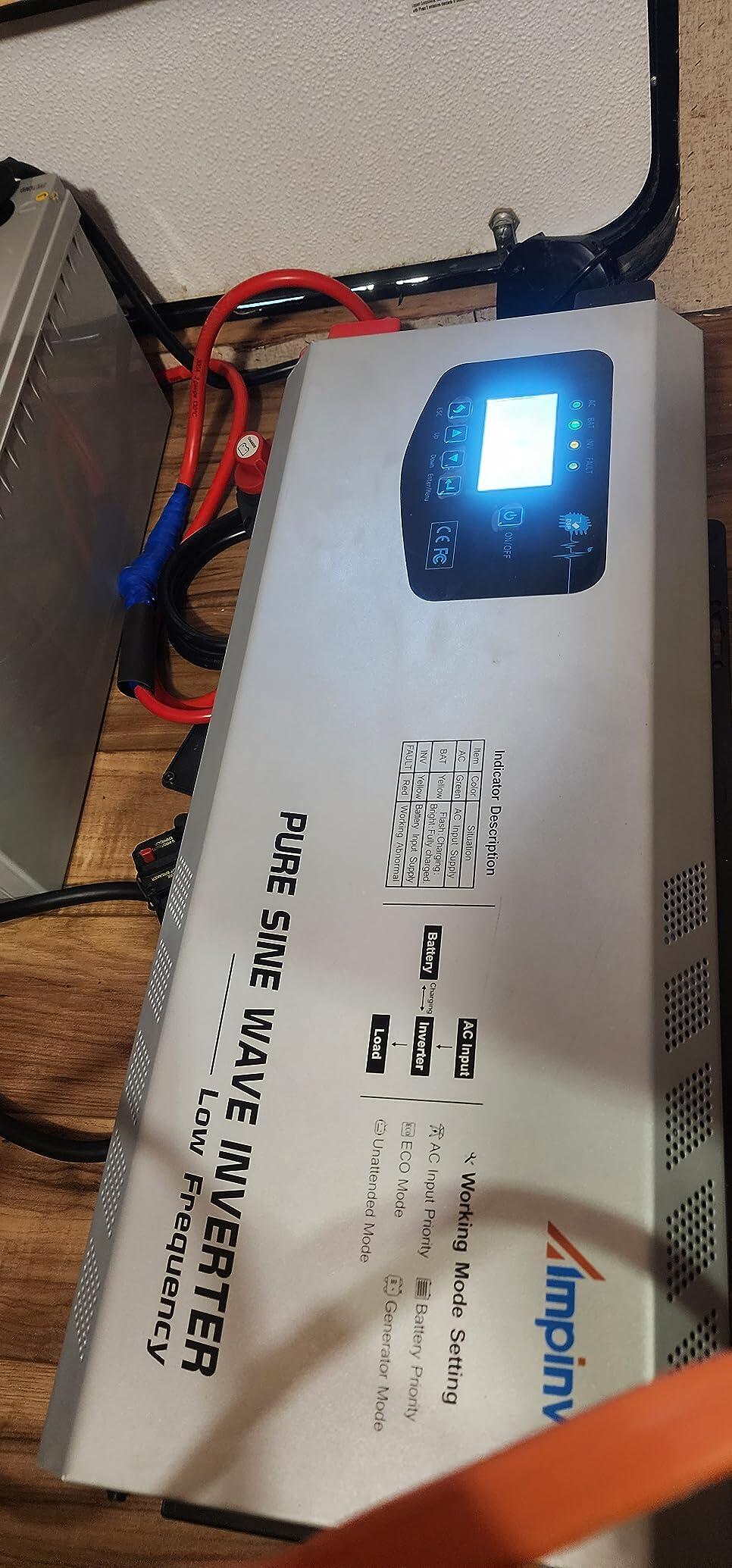

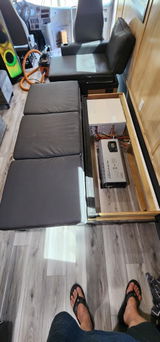

Works like a charm, its pretty big but runs quietly and efficiently ! Just converted my rv to solar and its doing its doing its job.

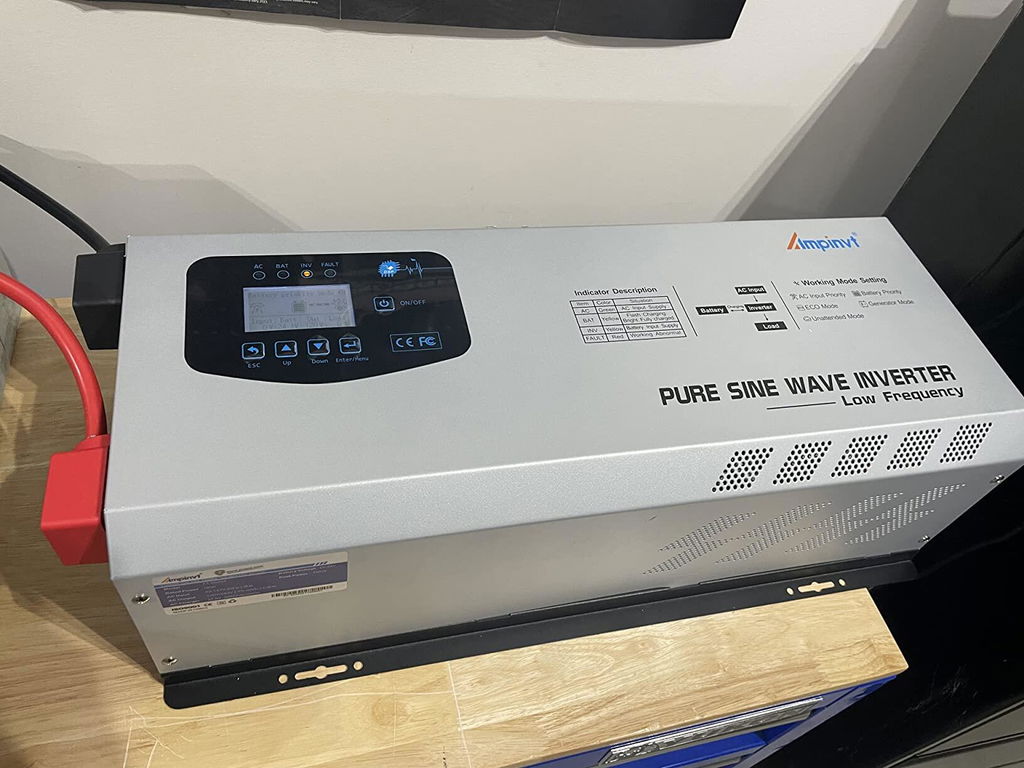

Very happy with this inverter. I have been tinkering with off-grid solar projects in my garage but wanted the ability to do more. This was a significant upgrade for me from a 12v 2000w inverter. So happy to have split phase and more capacity. I run a fridge and charge power tool batteries off it with two 12v 200ah AGM batteries in series and 200w of solar panels. Love that I can plug in a space heater no problem now.
