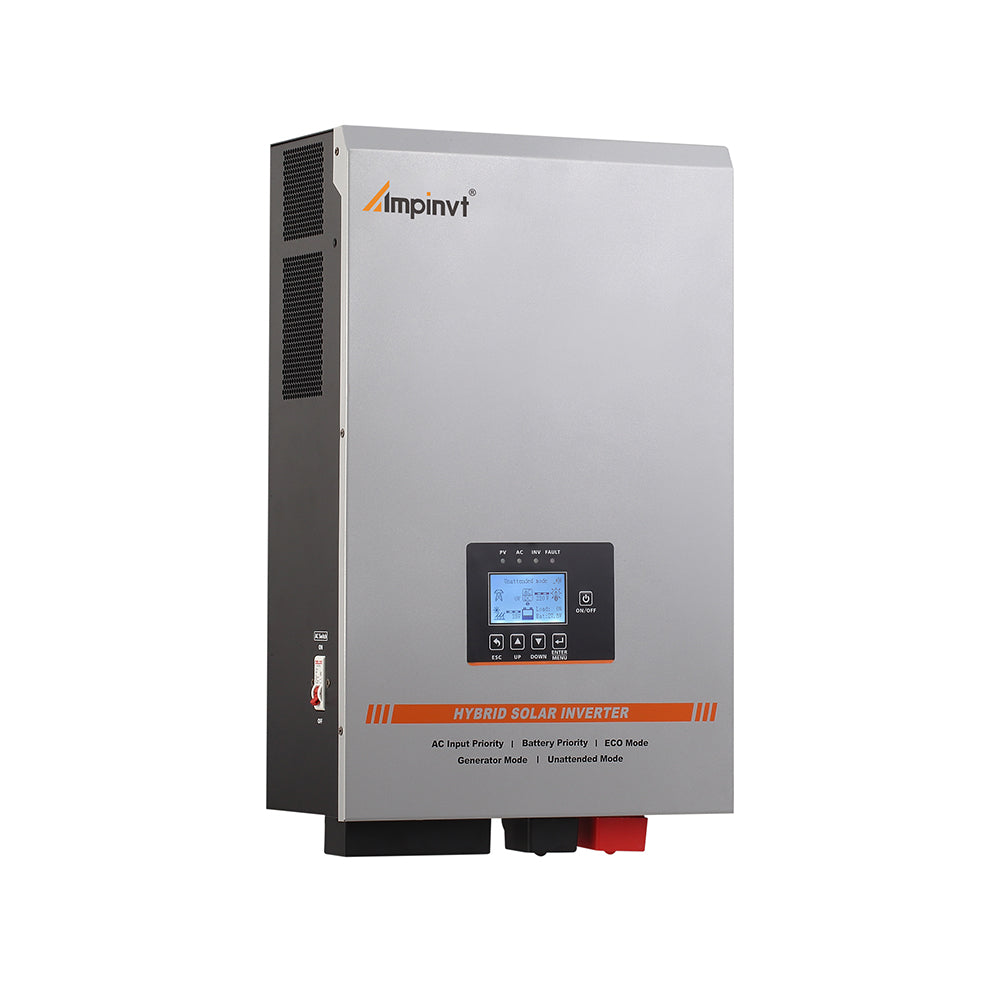

Inversor cargador solar de onda sinusoidal pura de fase dividida de 5KW CC 48V fuera de la red

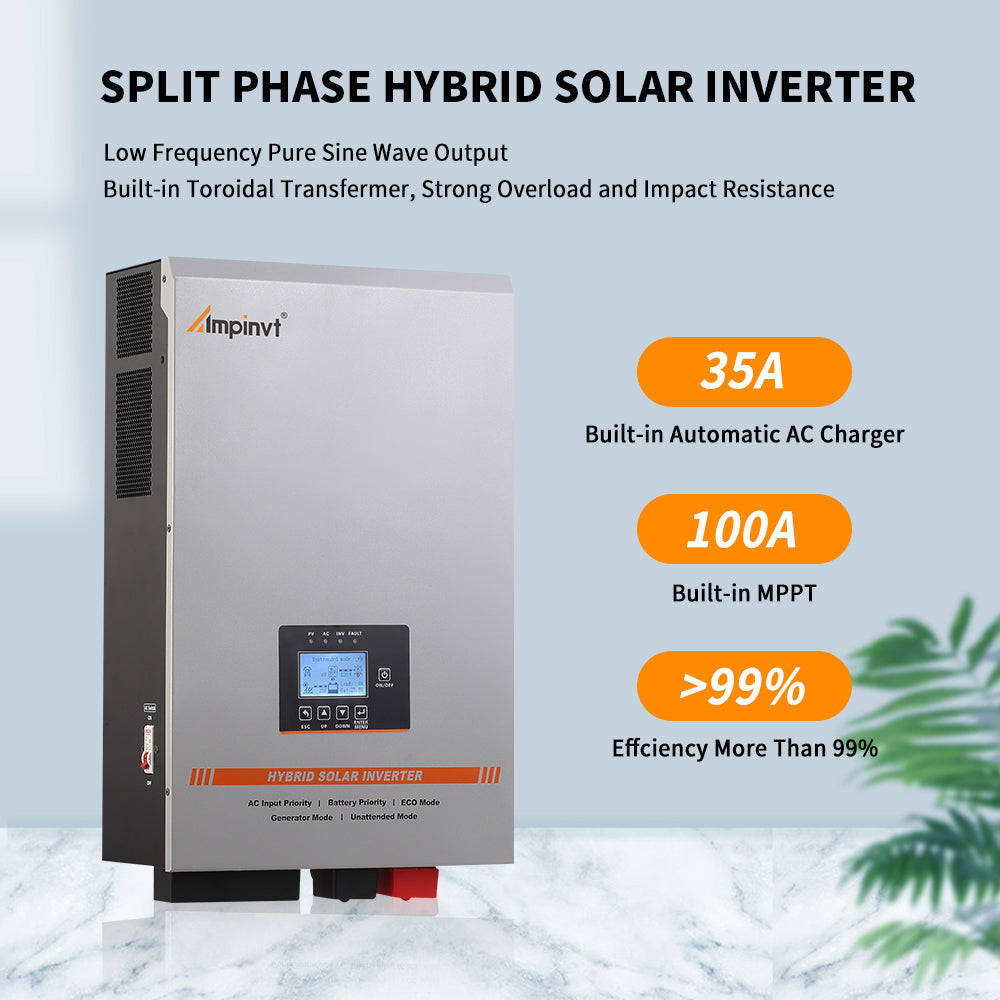

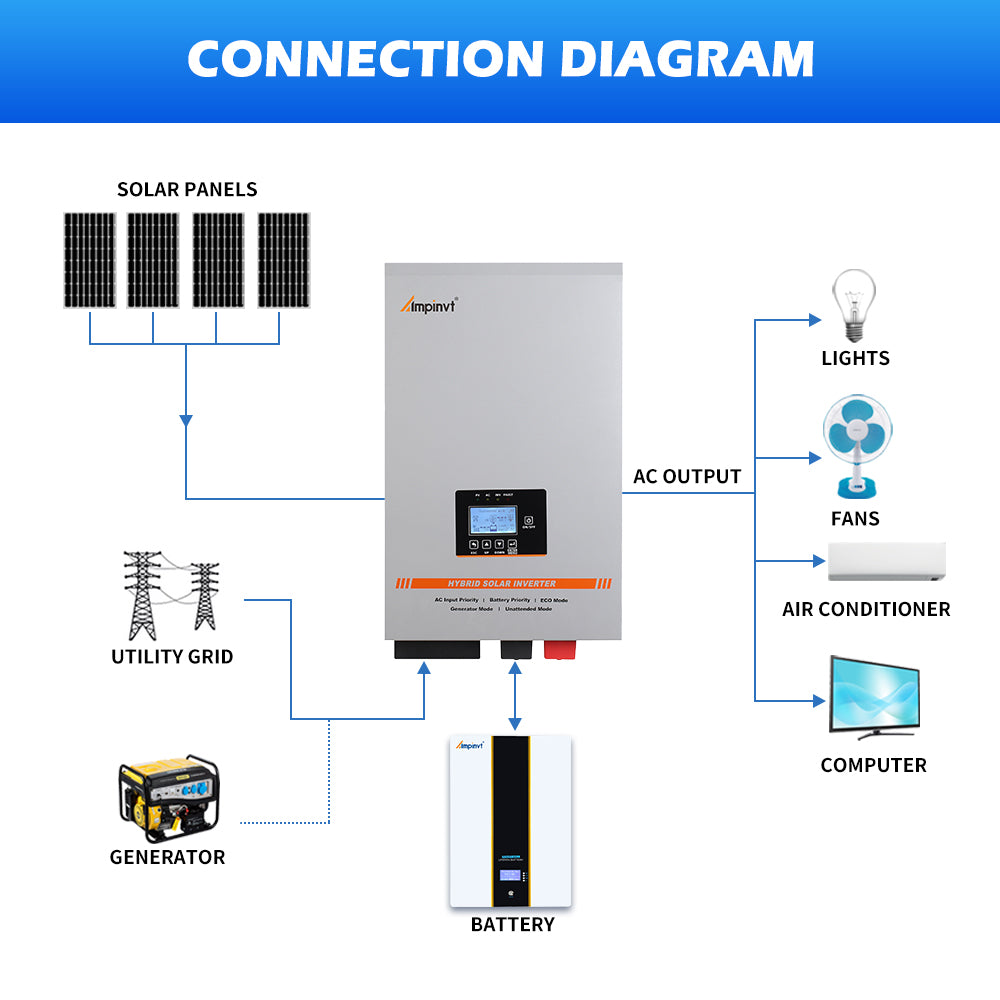

- This Pure Sine Wave Solar Inverter is a combination of an inverter, ac battery charger , MPPT solar charge controller and AC auto-transfer switch. High transfer efficiency is above 85%, built-in AVR stabilizer, complete isolate surge interference of input & output's voltage and current, Impact resistance super load capacity, continuous stable pure sine wave output. Available at 240Vac (HOT1+HOT2) and 120/240Vac output at the same time.
- The max charge current can be adjusted from 0%-100%, 100% is max charge current 35A. Setting the value to 0% will turn off the charging function.
- Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms

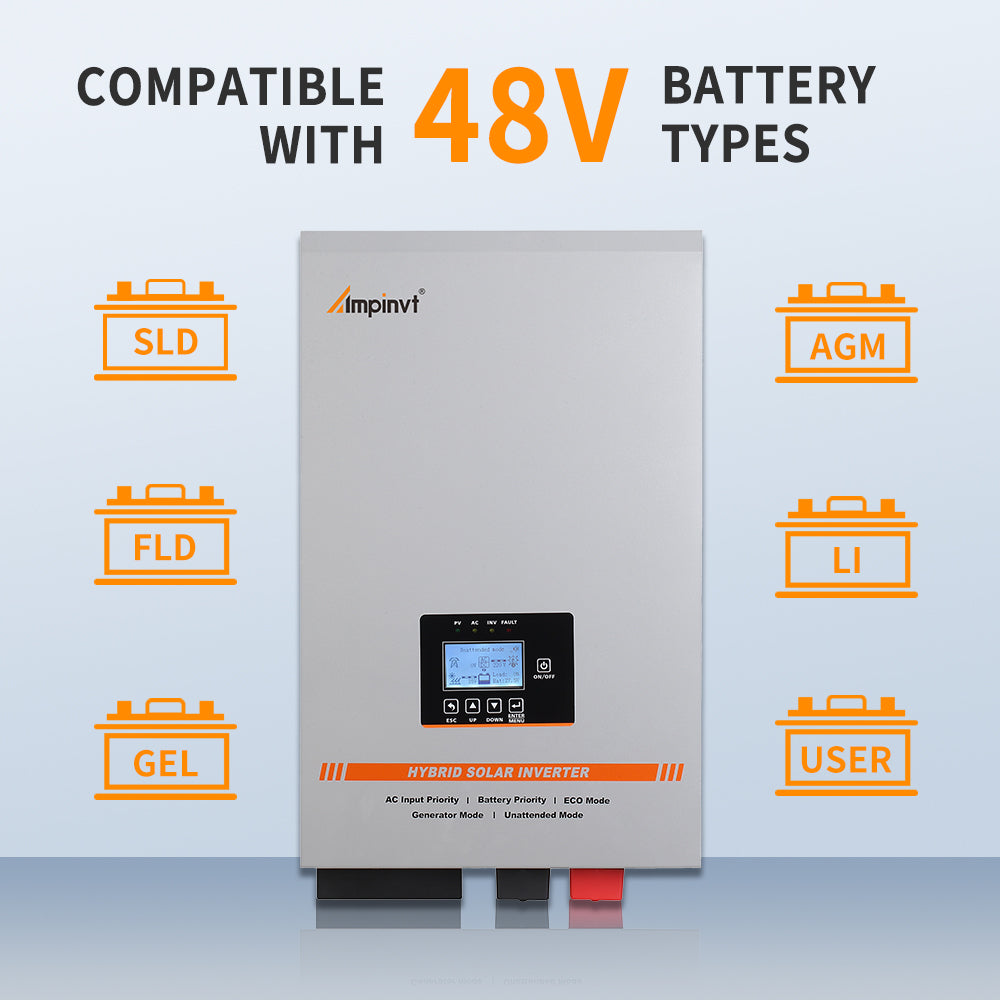

- 100A MPPT controller with high tracking efficiency of up to 98% can charge 48V lead-acid batteries (Seal, AGM, Gel, Flooded), LiFePO4 batteries and lithium batteries(User Mode) from solar panels, the grid, or a generator. Maximum PV Array Power is 5600W and the MAX PV input voltage is 150V DC
- Protections: Battery low voltage alarm / Battery high voltage alarm / Over temperature protection / Over load protection / Short Circuit protection. 110%-120% of the output was maintained for 30s, then the output turned to bypass, more than 160% maintained the 300ms.
NOTA: DISTINTOS TIPOS DE CARGAS TIENEN DIFERENTES CORRIENTES DE IMPULSO DE ARRANQUE. LOS CLIENTES DEBEN SELECCIONAR EL MODELO DE INVERSOR ADECUADO DE ACUERDO CON LA POTENCIA, LA CORRIENTE Y LAS CARACTERÍSTICAS REALES DE LA CARGA DEL EQUIPO.
ATENCIÓN:
- Este inversor de potencia puede cargar el banco de baterías cuando la energía CA/solar está conectada al inversor.

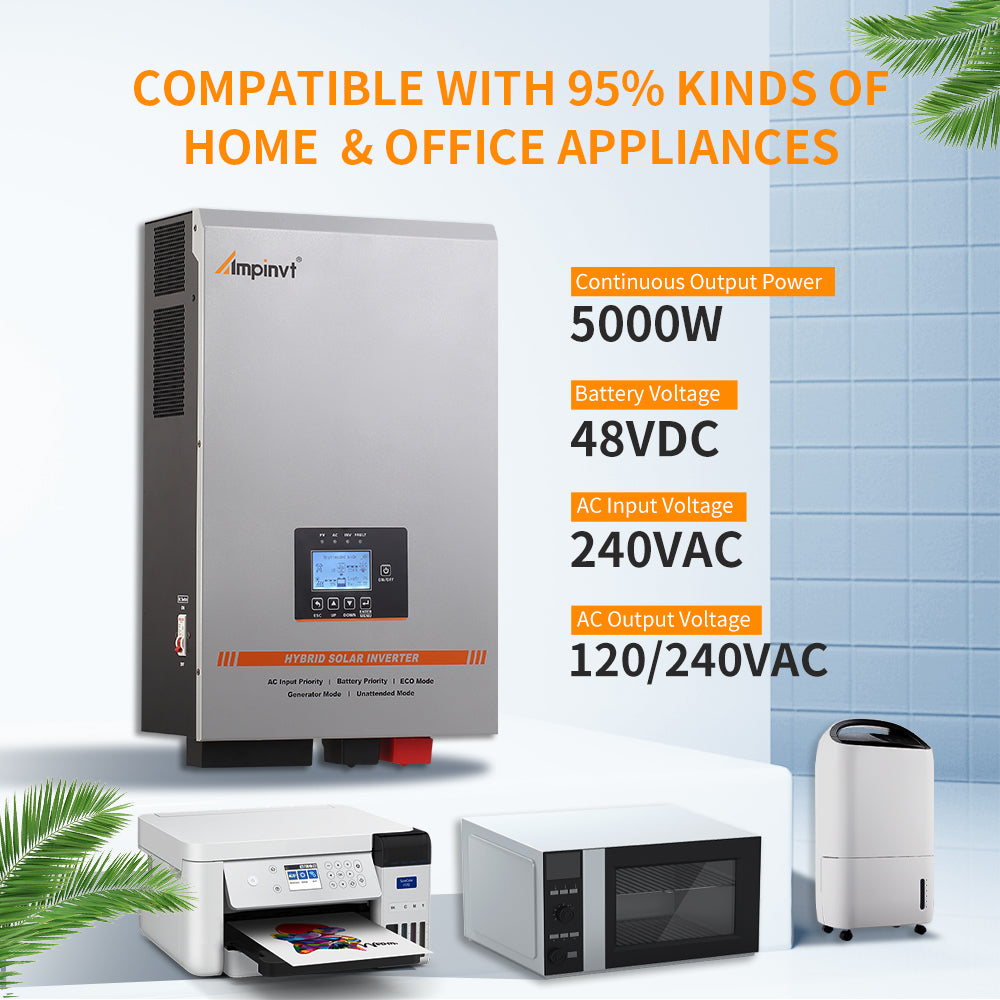

- 5000 vatios es potencia de salida continua, la potencia de salida máxima es de 15000 W
- Este inversor puede SOLO Funciona con sistema de batería de 48 V.
- Inversor NO PUEDO Admite conexión en paralelo.
- Inversor DEBE tiene una batería, y la batería DEBE estar conectado primero

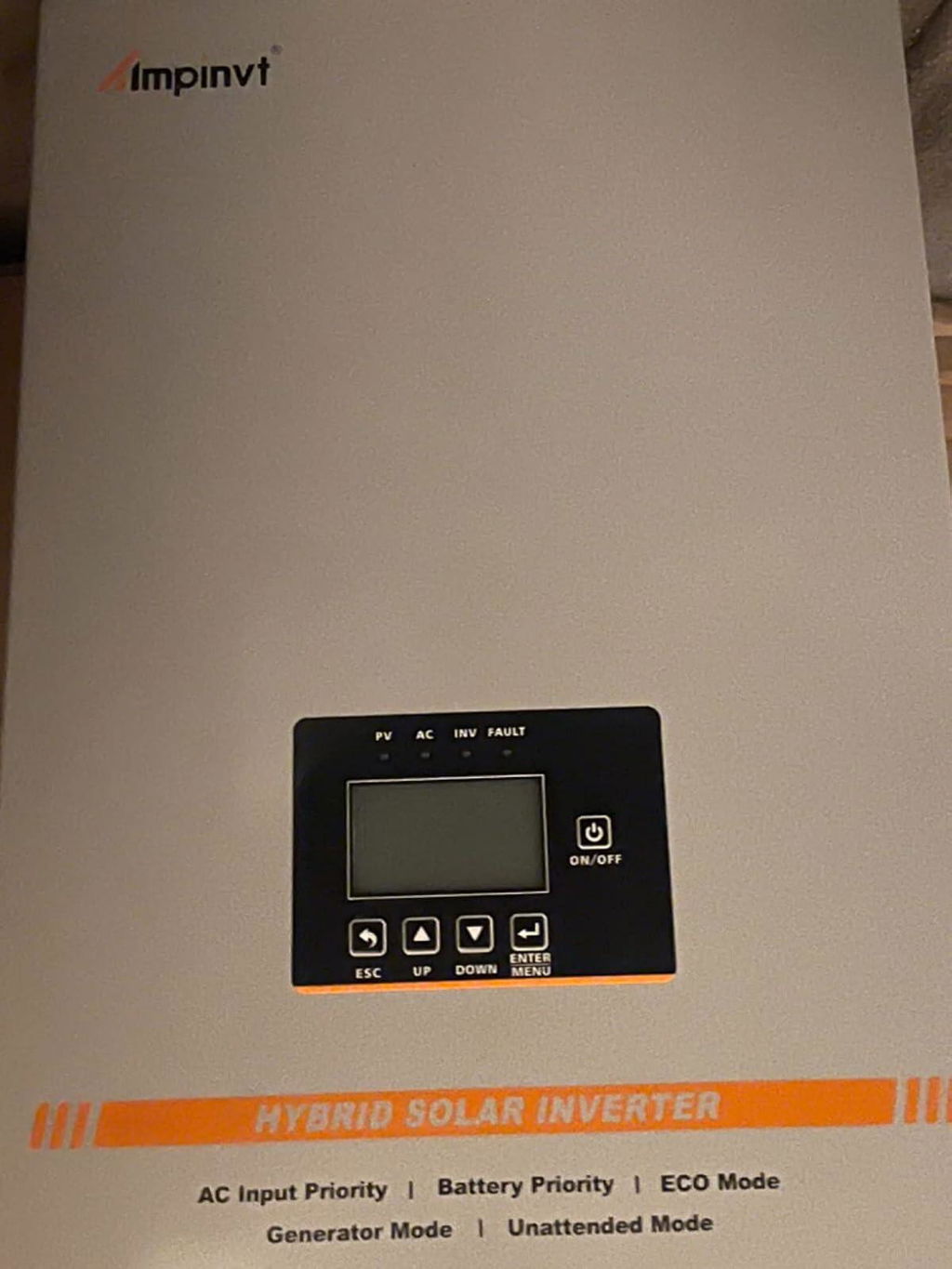

CINCO MODOS DE TRABAJO:
1. Modo de prioridad de línea/CA - Utilice siempre la alimentación de CA como entrada prioritaria, proporcione una salida de CA y cargue la batería automáticamente.
2. Modo de prioridad de batería -- Se debe dar prioridad a la fuente de alimentación de la batería. Después de la protección de bajo voltaje, la batería se transferirá a la fuente de alimentación del mercado. Cuando la batería esté llena, se transferirá nuevamente a la fuente de alimentación de la batería.
3. Modo ECO --- Carga < 10% suspensión automática y detención de salida, carga > 10% arranque automático de regreso a inversión normal.
4. Modo generador - utilice un generador inestable de 240 V para generar energía, acceda a la entrada de CA del inversor, a través del regulador AVR del inversor, coincidencia automática de la frecuencia municipal de 60 HZ, regulador de voltaje de salida en el rango operativo normal.
5. Modo sin supervisión : cuando la batería tiene bajo voltaje, el inversor pasa al estado de espera (estado de ahorro de energía). Cuando la batería recupera el valor de voltaje establecido por usted (como la carga solar), el inversor recuperará la salida normal y realizará un funcionamiento completamente automático sin supervisión.

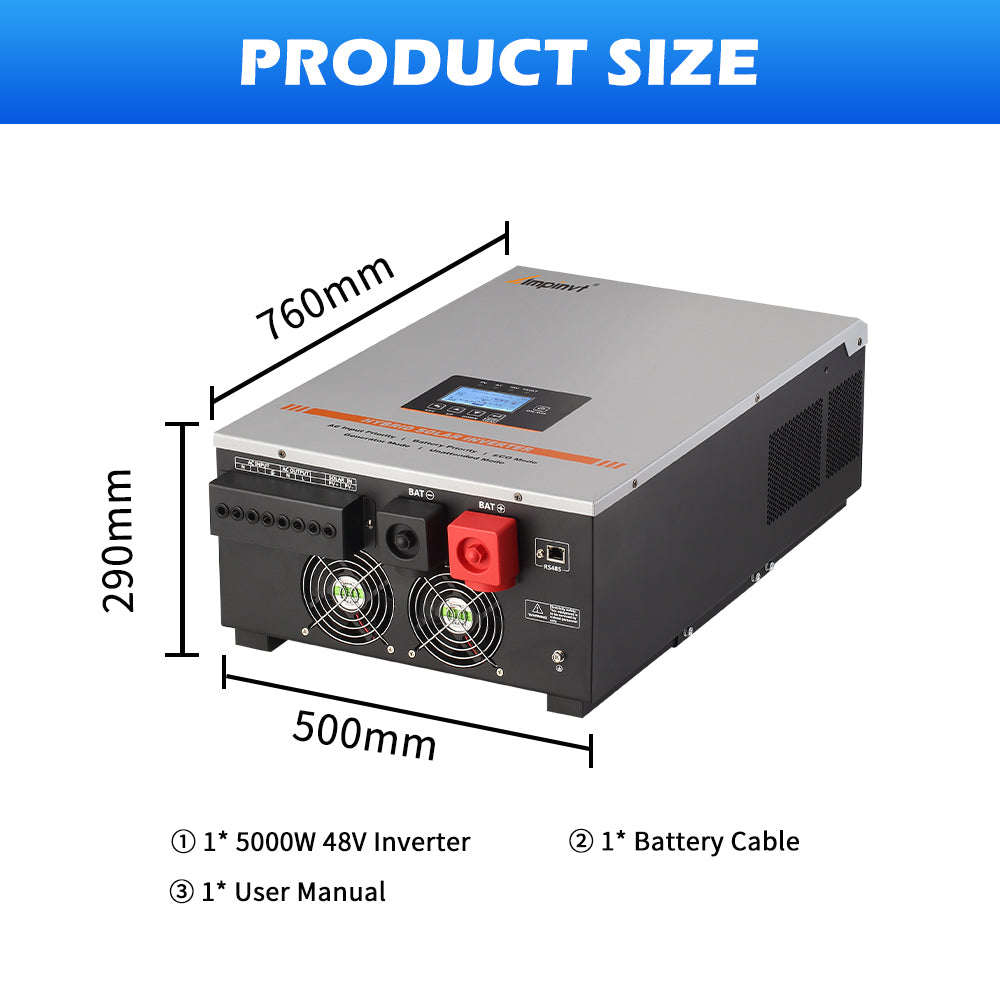

Inverter x1
Power Cable x1
User Manual x1
Communication Wires (optional)
External Display (optional)
Download AMPINVT TG Series Split Phase Solar inverter Manual
Productos Destacados

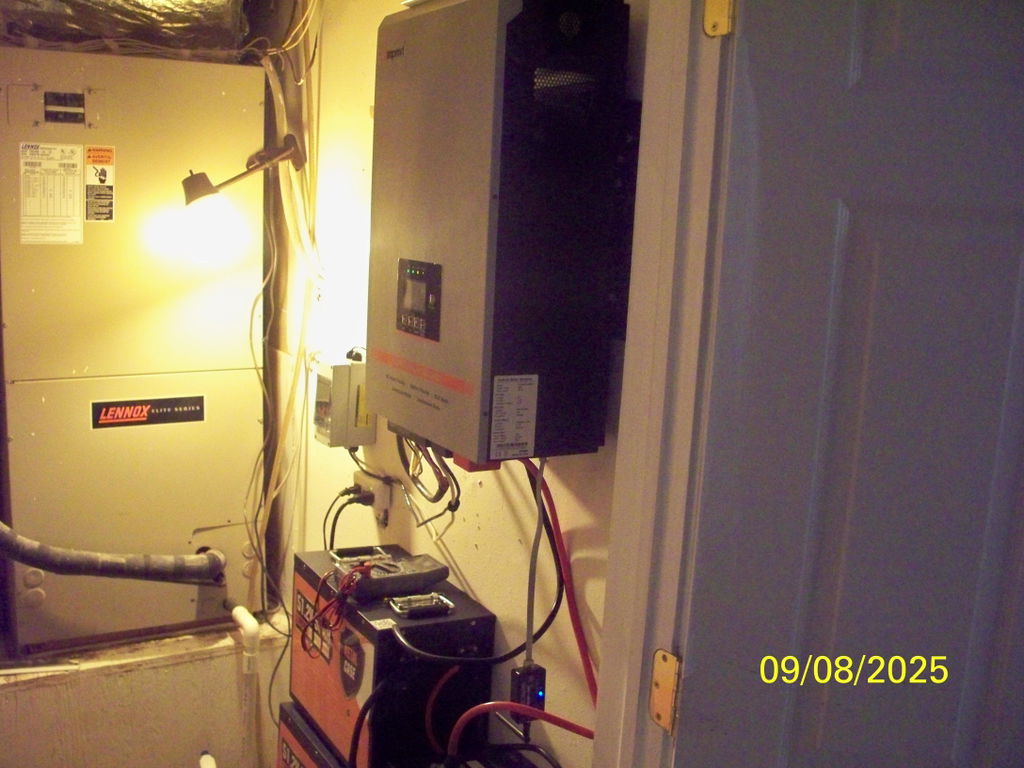

Installed on my off grid cabin FAR FROM ANY CITY OR POWER SOURCE, I'm powering a 220v fujitsu mini split, 110v mini fridge/freezer, microwave, lights and well pump, I have not tried my generator yet that I hooked to AC Grid input, everything else works. instructions are very lacking almost non existent, I'm running 2 Renogy 200AH Batteries in series, solar charging seems to be working. I'm running mine on unattended mode, I will post periodic updates.

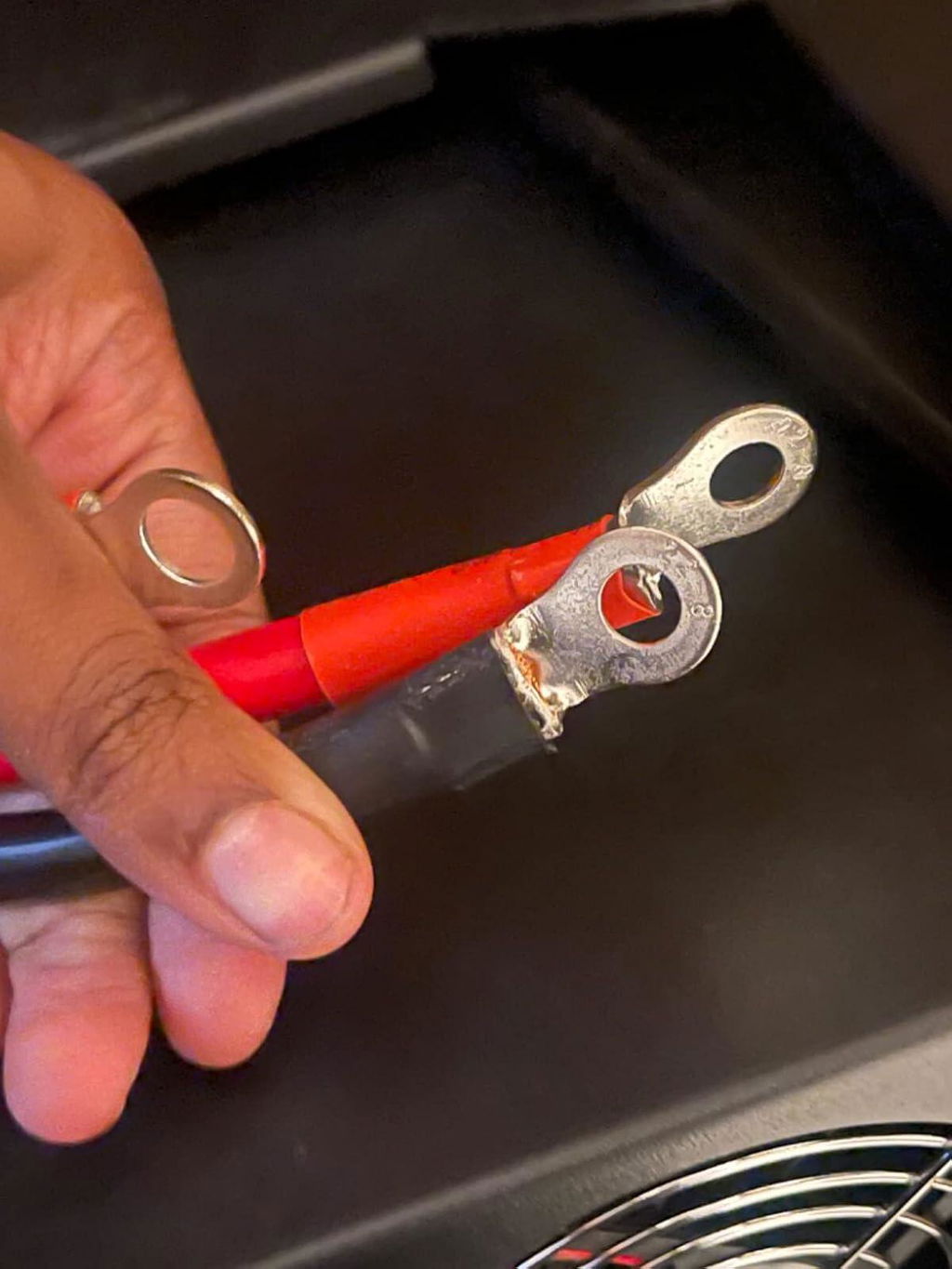

Switched over from there basic 80amp controller to the spf controller worth every penny. I wish the battery terminals where bigger and the solar input terminals. The ac in and out are fine for 6/4 to a 2p 50amp breaker. Im using there 80amp as back up along with the old inverter. One is none two is one. Great product.
Wow! A true work horse
Excellent inverter. Quiet and easy install. Need to know wifi module model and max solar panels I can use.
I purchased this Inverter a year ago and it has worked perfectly since the day I turned it on.
Ampinvt's Tech Support has been very responsive and provided answers to any questions within 24 hours... sometimes faster.
I like the choices and ability to make my own settings in the Control Panel Menu and so far it has provided every feature that I need.
I purchased the 3-year Extended Warranty 'Just-In-Case' but have not had to use it for anything.
I am planning on building another system for another building, and I plan on sticking with a winner...
Ampinvt.
Thank you!
(And No, I am not a paid reviewer or something. Ampinvt promptly answered a programming question, and requested I write a Review. I was delighted to, since everything with this inverter has been positive).
I was very meticulous in my Install and wiring though. If any mistakes are made, Especially when working with Batteries, there can be dire consequences... and that wouldn't be the Inverter Manufacturer's fault.
So Be Careful!
